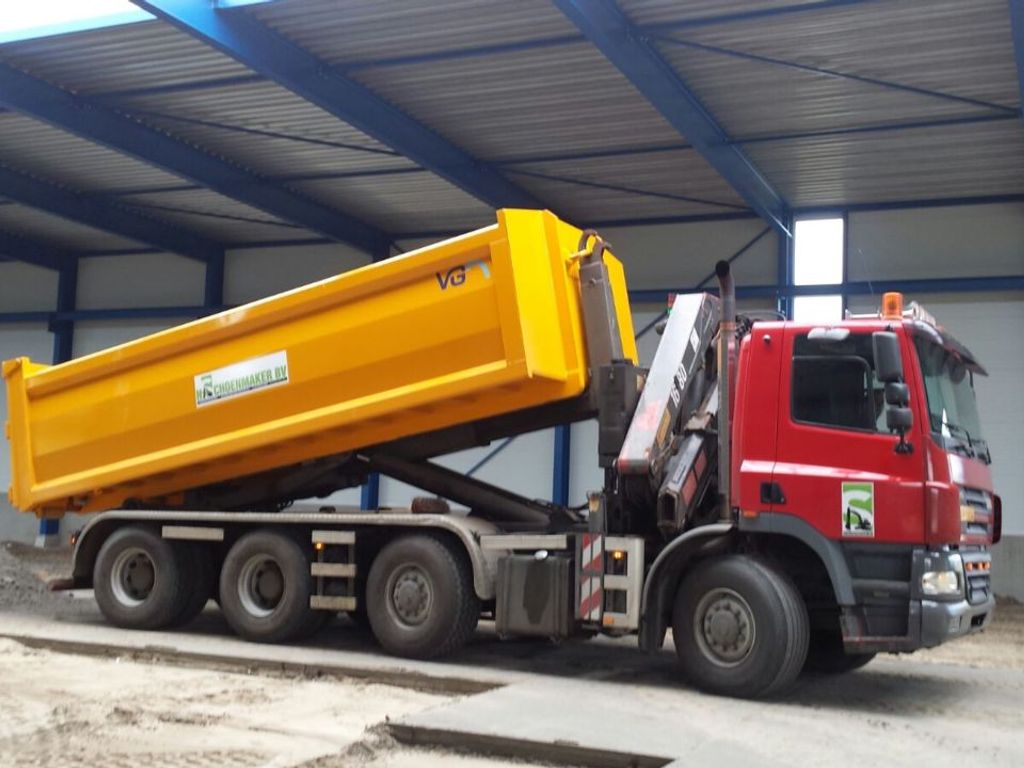

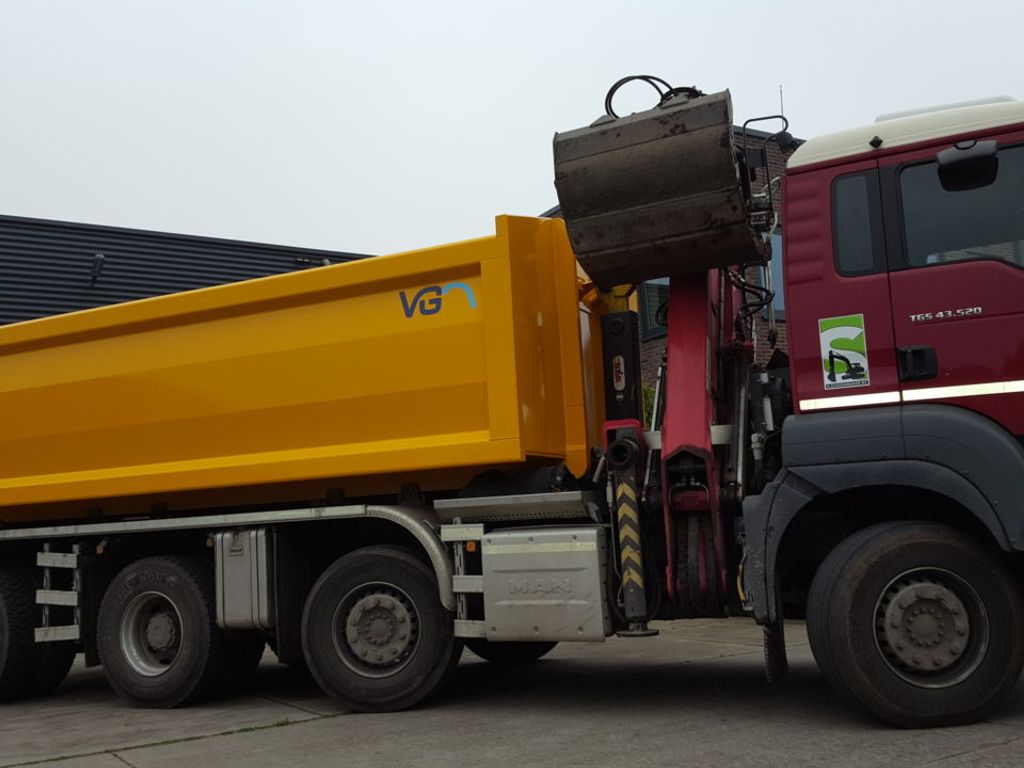

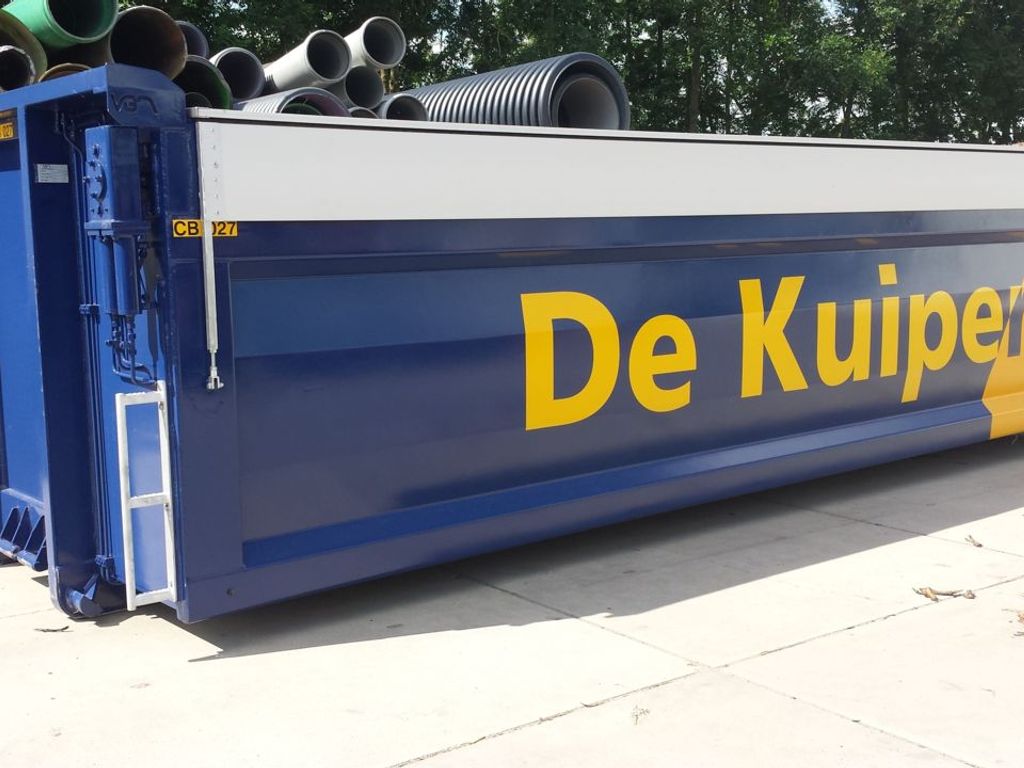

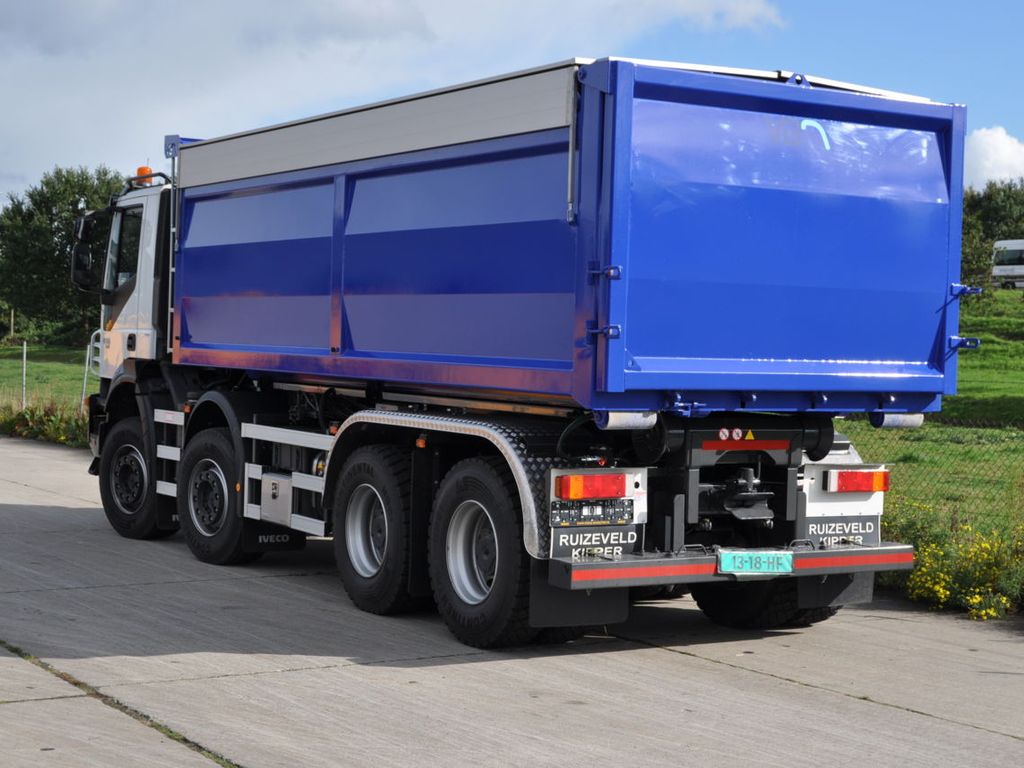

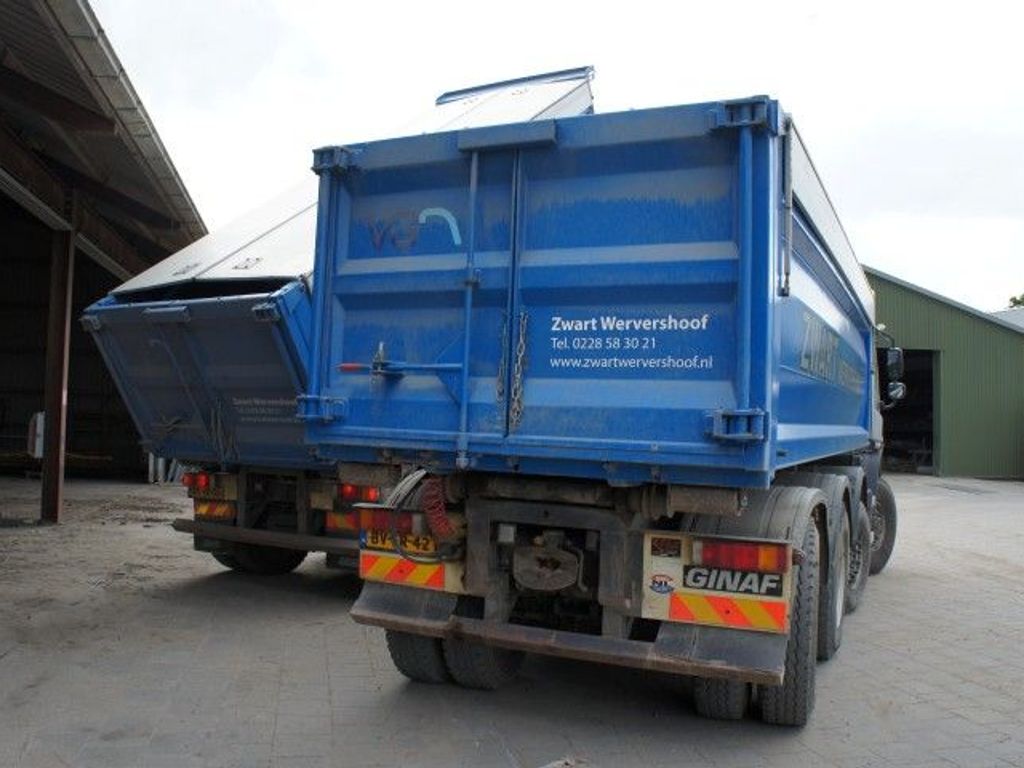

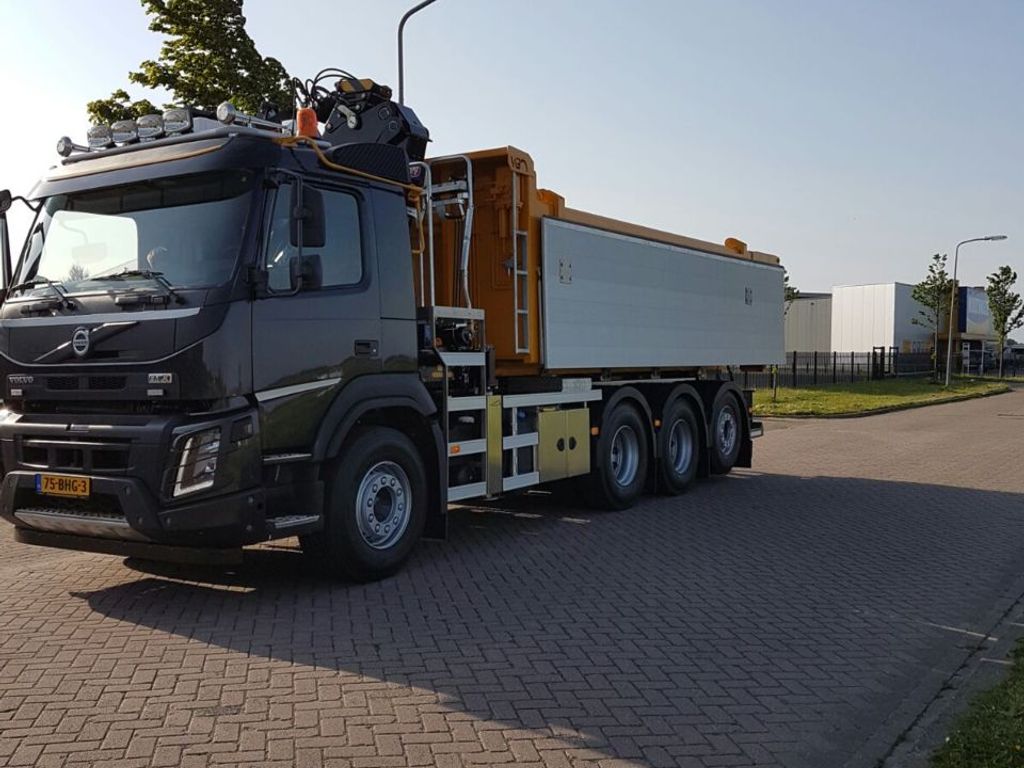

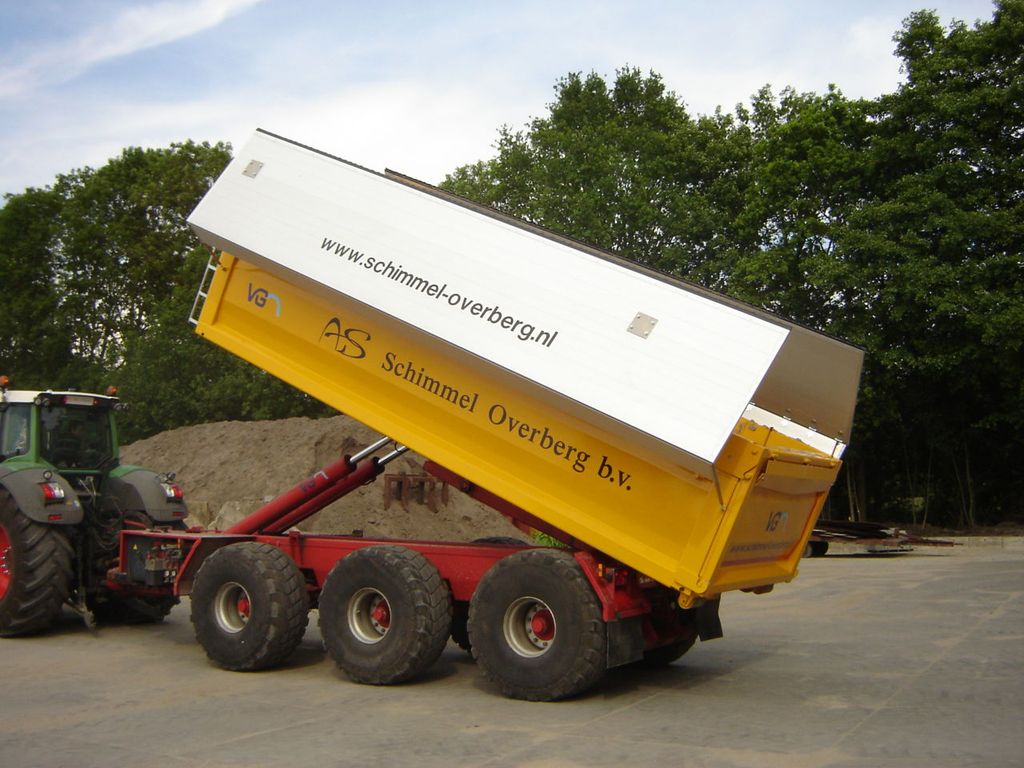

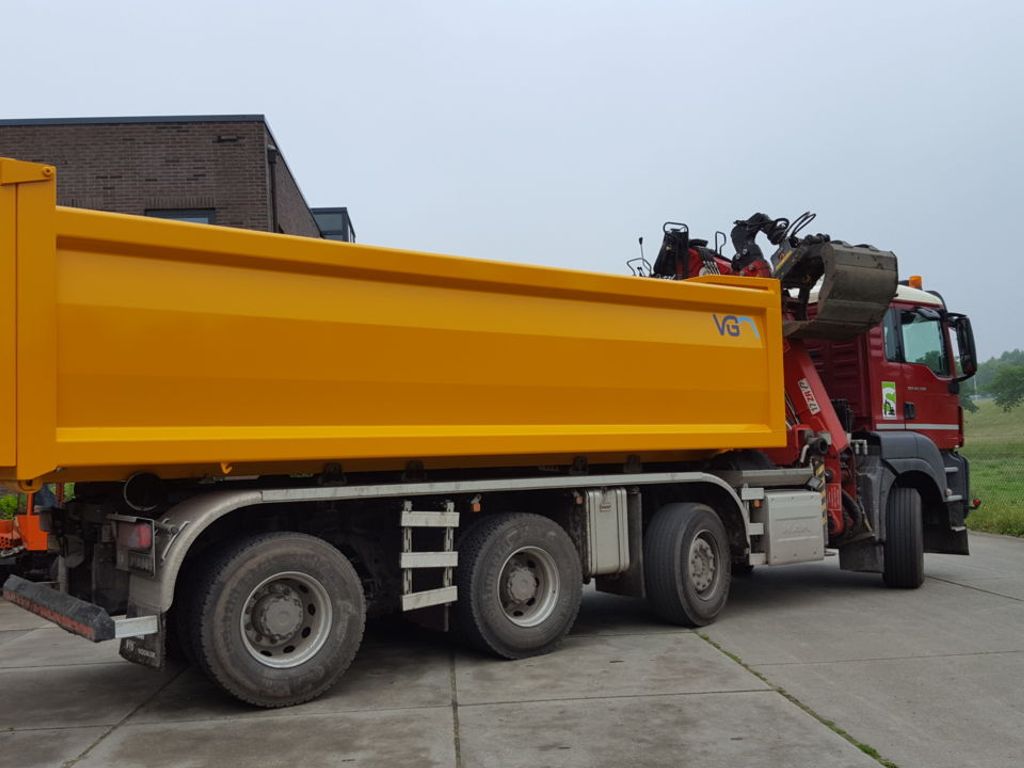

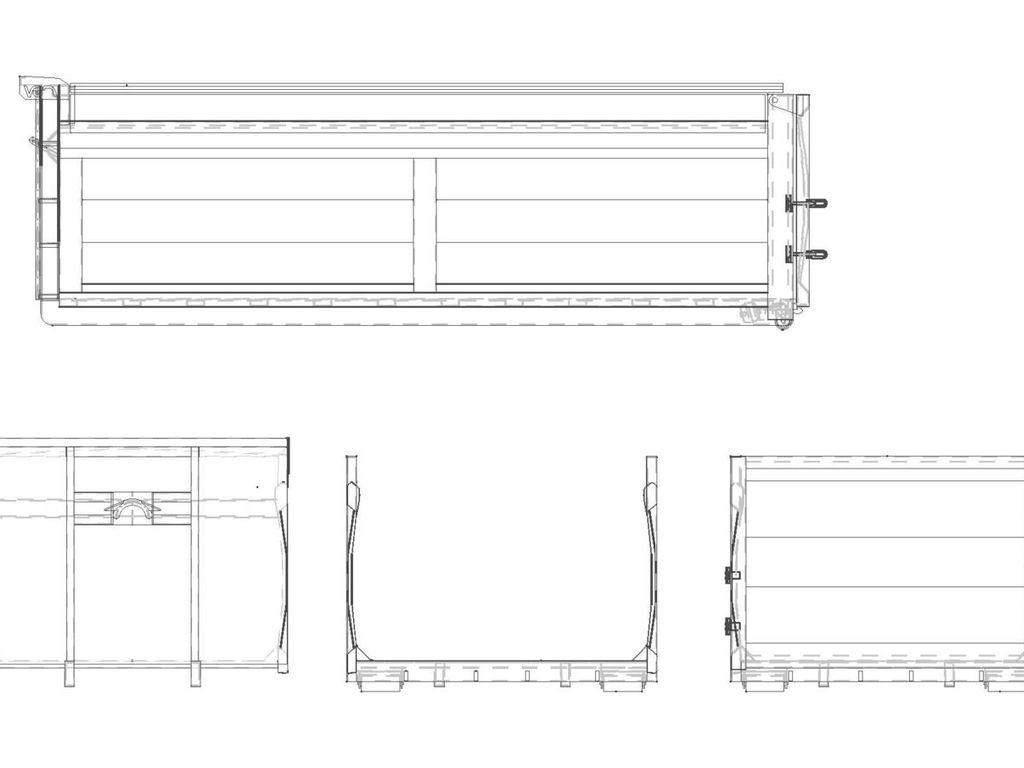

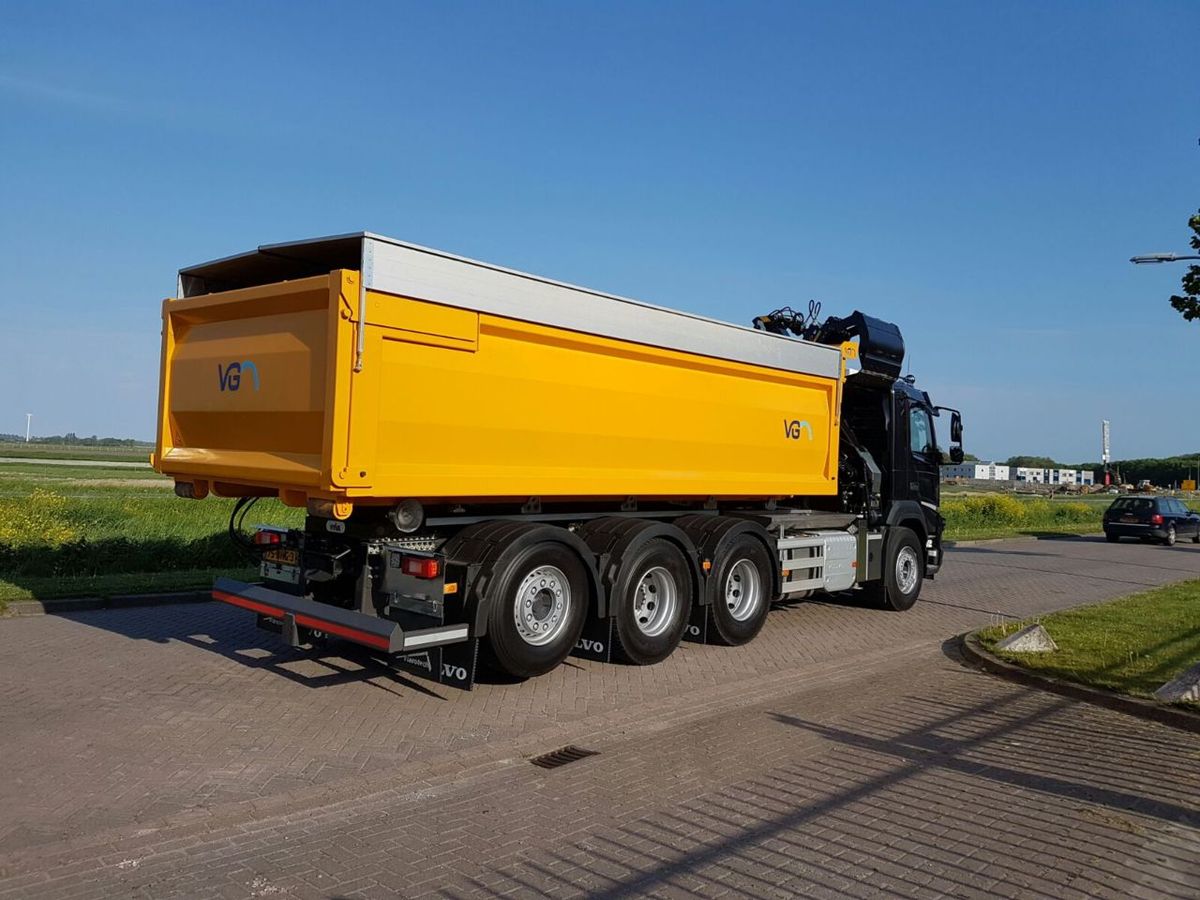

Tipper-container
Van Ginkel Machines has a great deal of experience in manufacturing all types of tipper containers. This VGM Tipper container is distinguishable by the excellent quality and durability of the product. The strength of this container is not only in the design and construction but also in the weight and materials used. Should you wish, VGM can adapt the standard model to your requirements. Custom designs are also possible
Standard version
"This tipper container is equipped with the following standard features:
Sliding hook arm
Plate thickness 5/4 mm (base / remainder
Steel Type 400
Base section distance 210 mm between the bulkheads
Chassis beams UNP200.
Floor beams recessed into chassis beams.
Bulkhead fitted with small awning and stepladder on the driver’s side.
Side wall model with 2 settings.
Bevelled lower corners.
Equipped with reinforced set upper edge in point and lower edge
Rear upper-locking mechanical tilt valve, standard locking with 2 boosters
Surface treatment fully blasted, 2K primer and 2K finishing coat.
One RAL colour of your choice."
Options
"All types of material thicknesses
various heights and lengths
Aluminium folding caps
Aluminium rotating caps
Hydraulic roof
Rolling roof
Rolling cloth
Folding nets
various types of material Hardox etc."
