Agricultural tippers
Discover
Teton 28

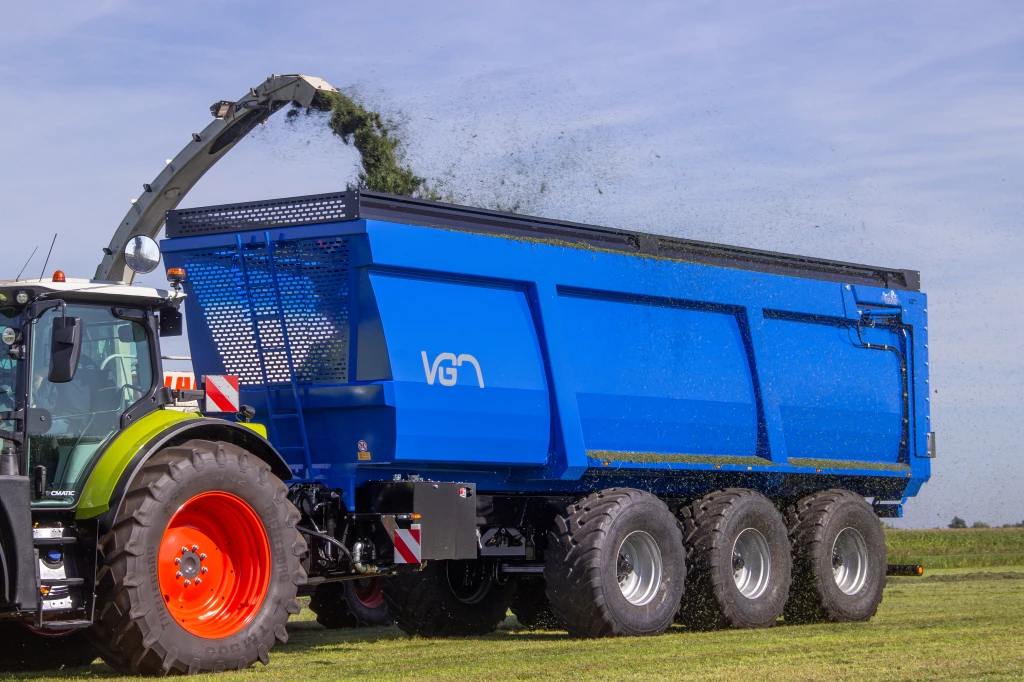

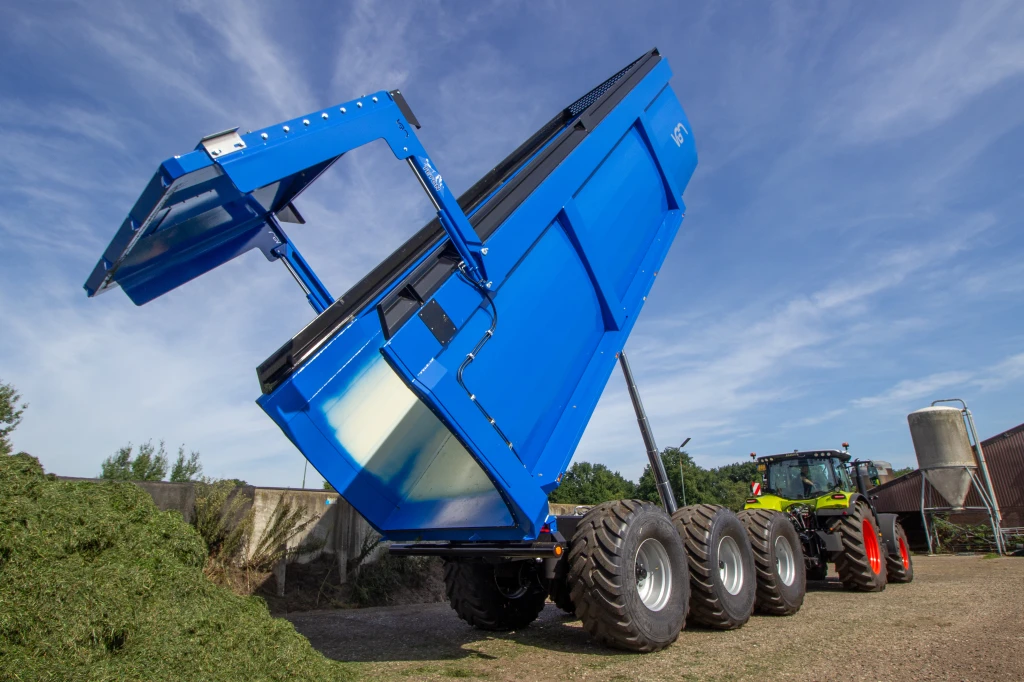

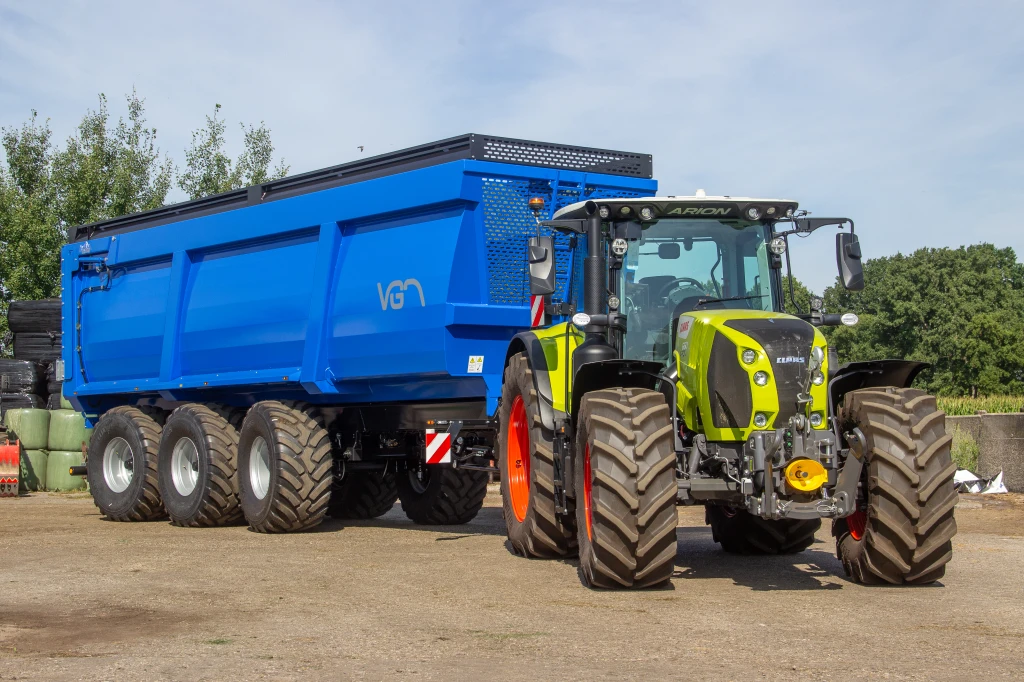

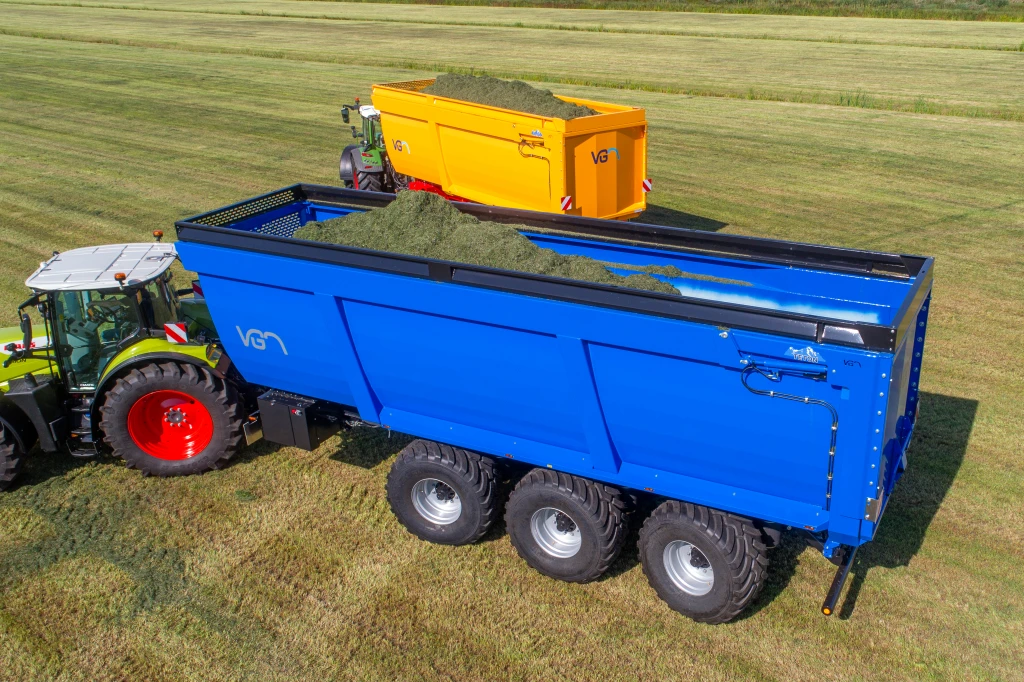

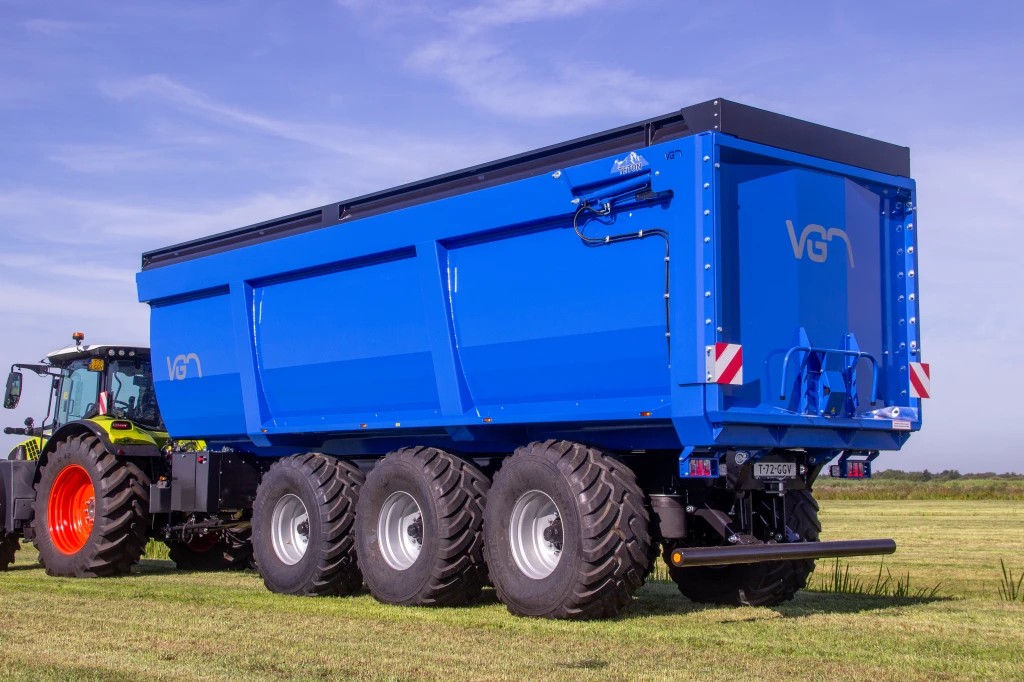

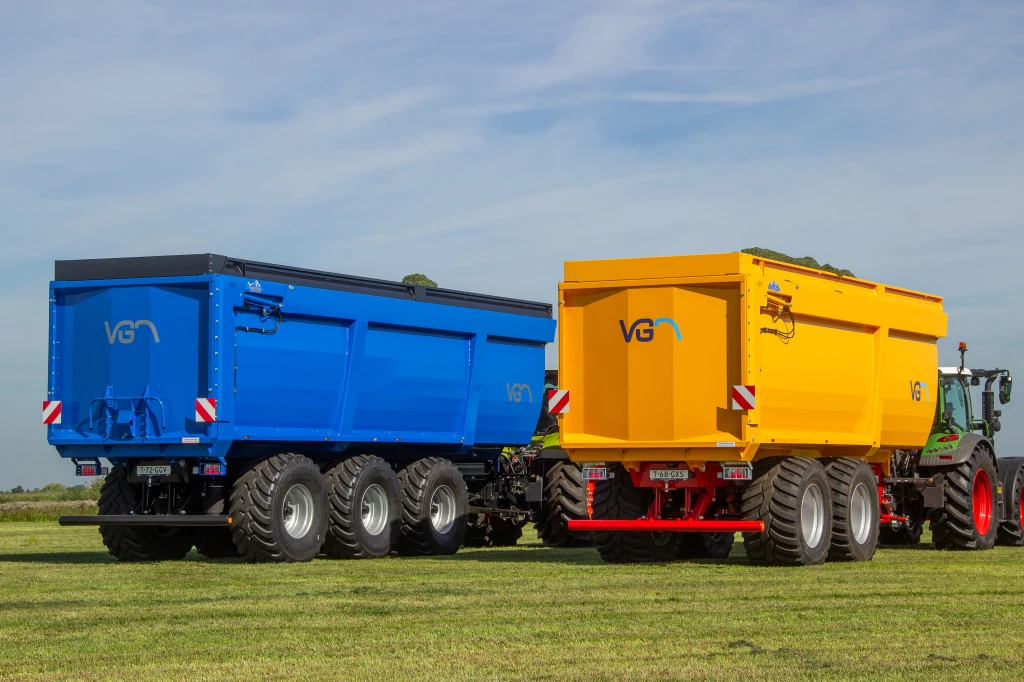

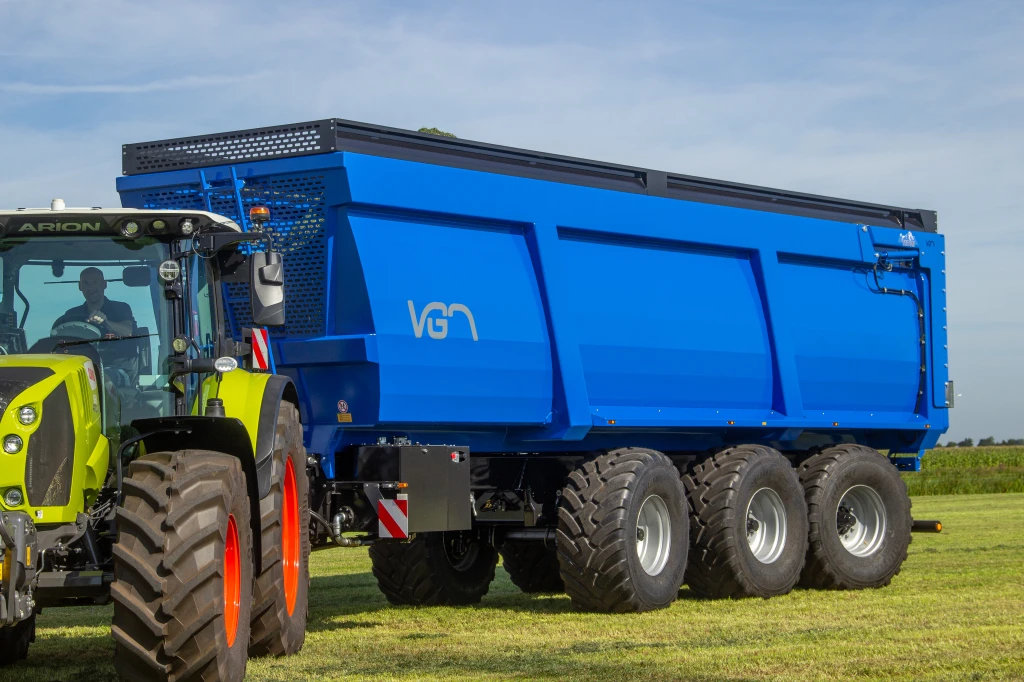

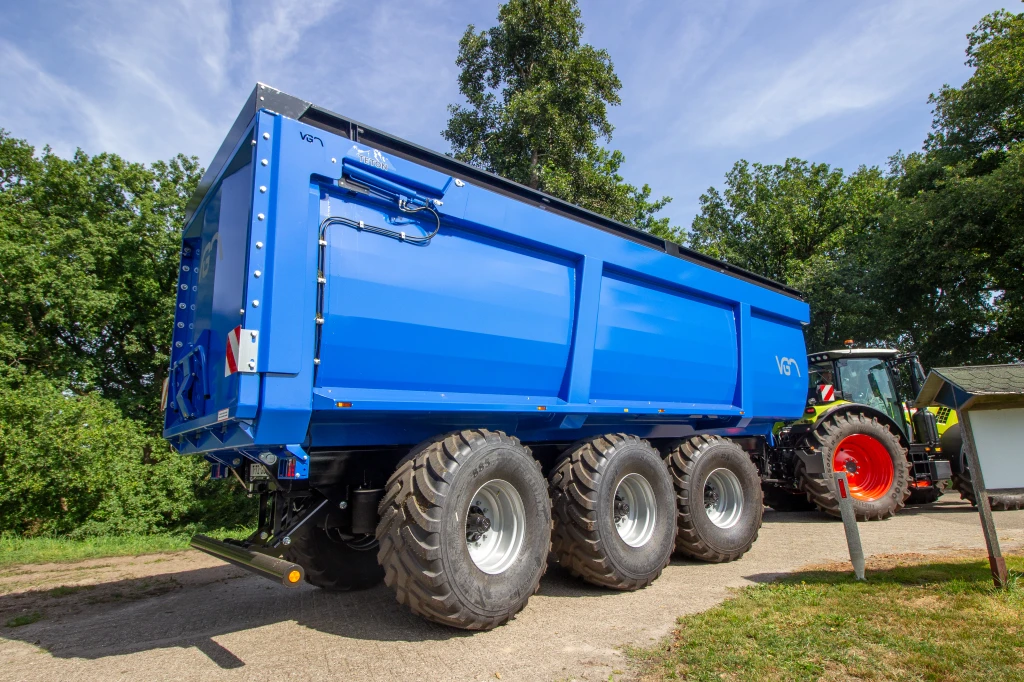

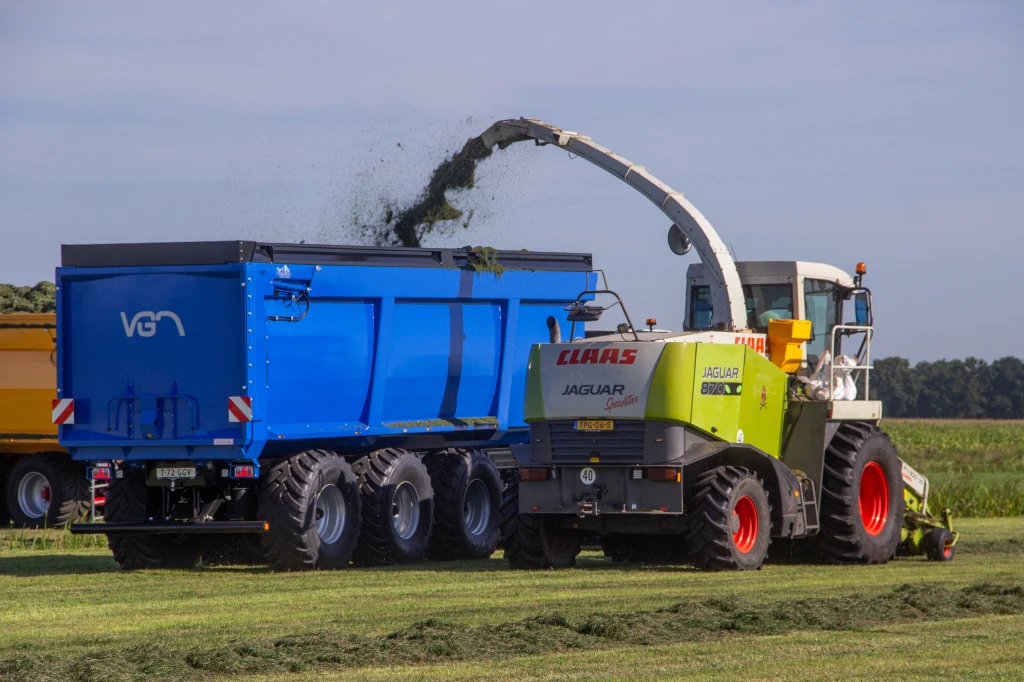

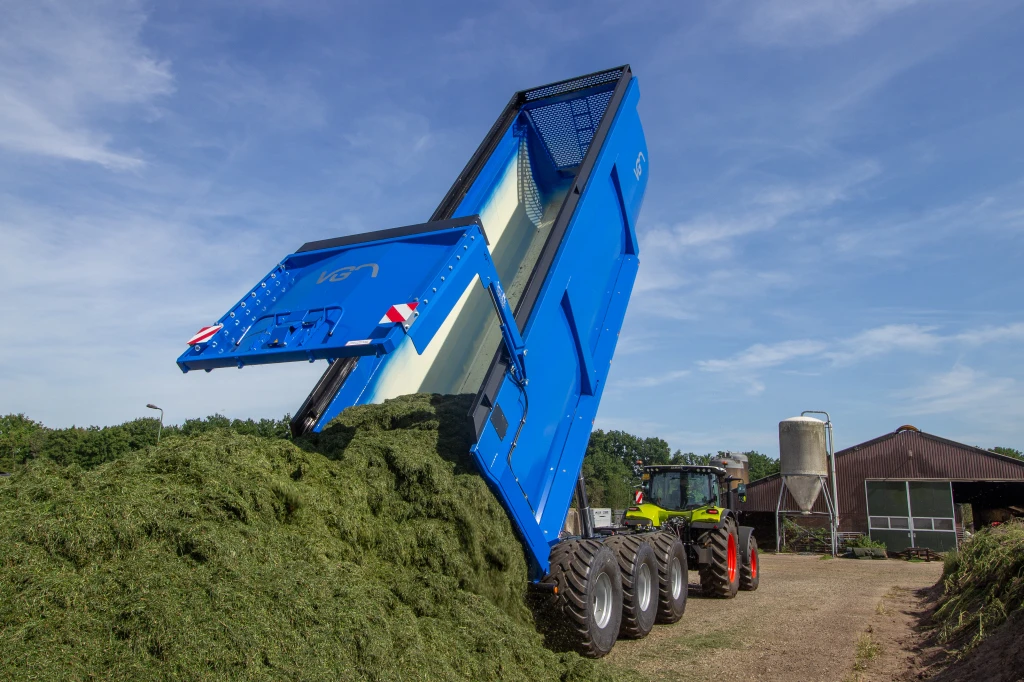

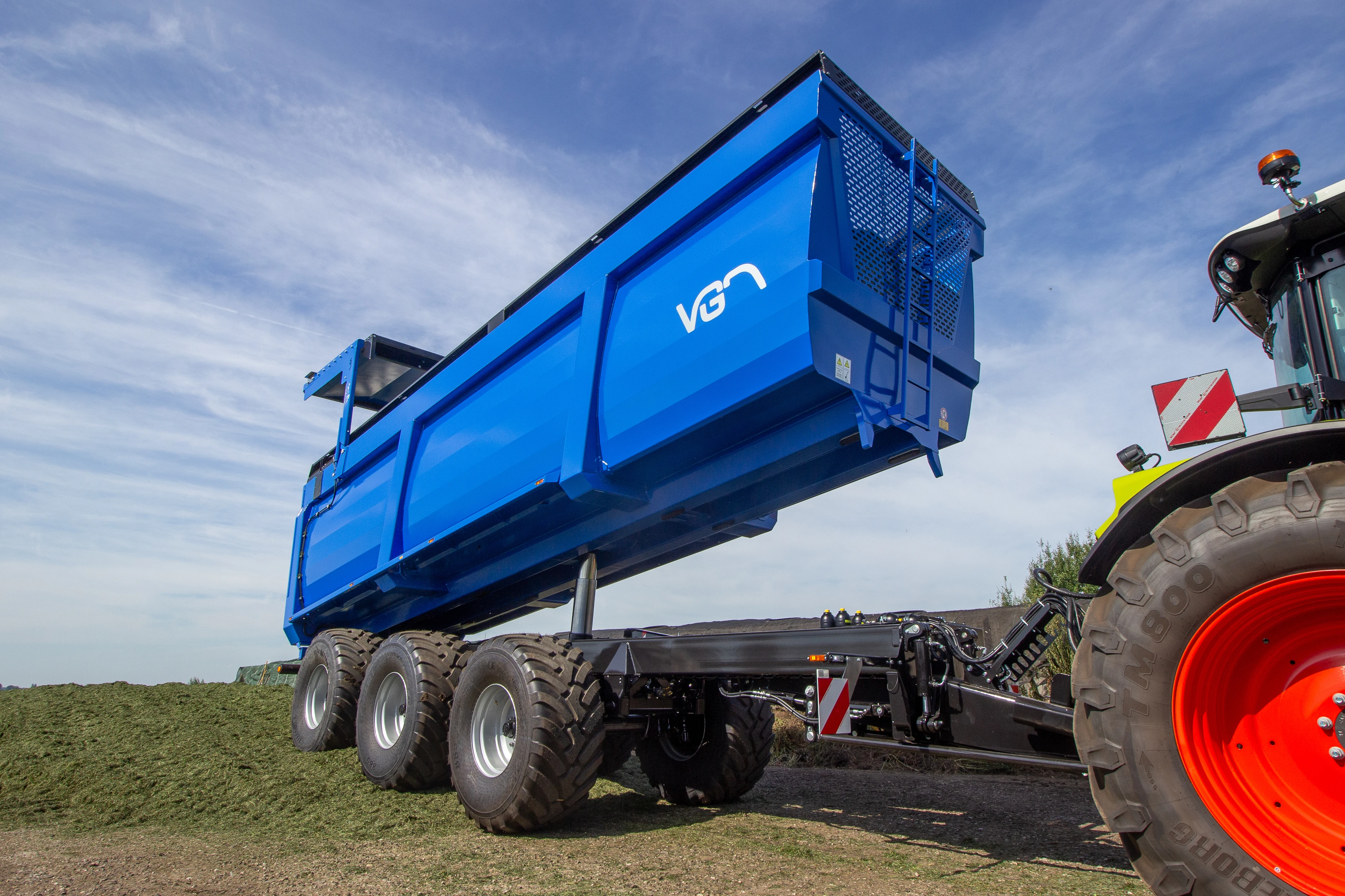

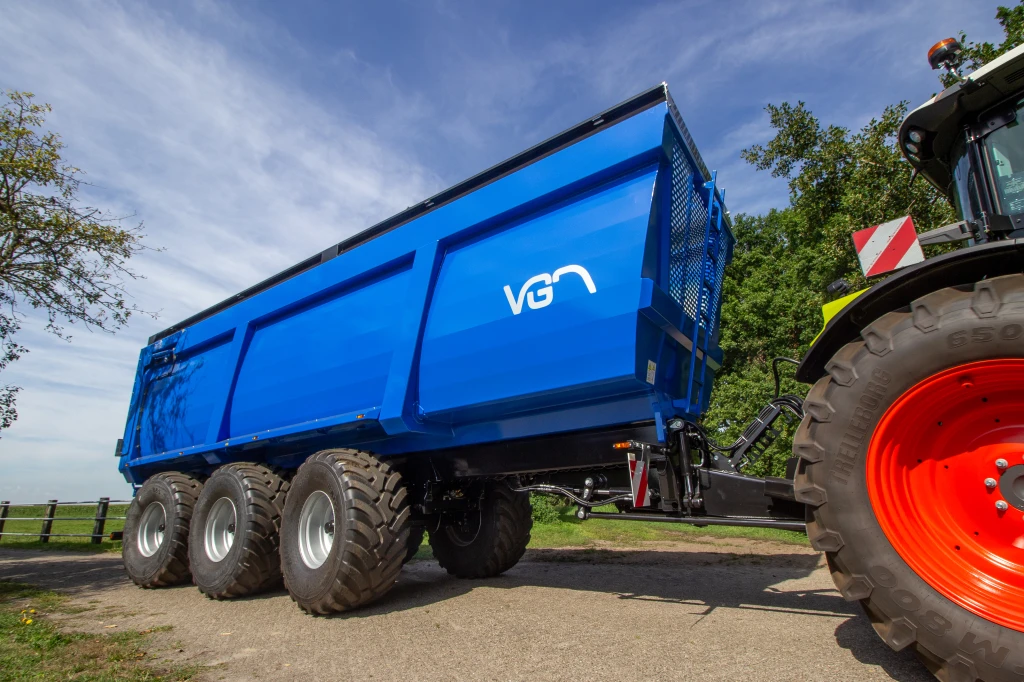

VGM silage tipper trailers are known for their functionality, robust construction, and durability! They prove this day in and day out in the field. VGM tipper trailers are distinguished by their well-thought-out design, featuring a smooth loading platform made of high-quality materials. The trailers have a high level of finish and a comprehensive standard specification. Whether on public roads or in rough farmland, VGM tipper trailers are at home anywhere. Thanks to their air-suspended BPW axles, these tipper trailers are suitable for any application.
Standard version
This tipper trailer is equipped with the following standard features:
- 10-hole axles, 150 mm.
- Hydraulic support leg, operated from the tractor.
- Tapered body for improved unloading.
- 5 mm floor and 4 mm side walls.
- Four-wheel brakes.

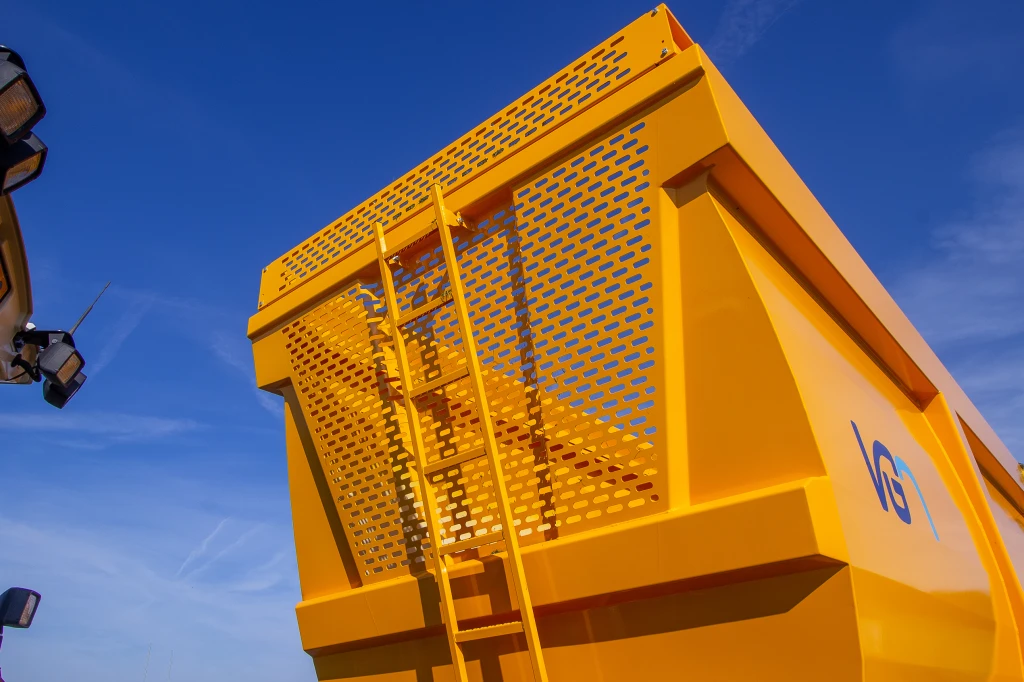

- Viewing grille in the body.
- Grain chute in the tailgate.
- Rotating tow eye.
- Hose support on the drawbar.
- Rubber-sprung drawbar.
- Bolted mudguards to the body.

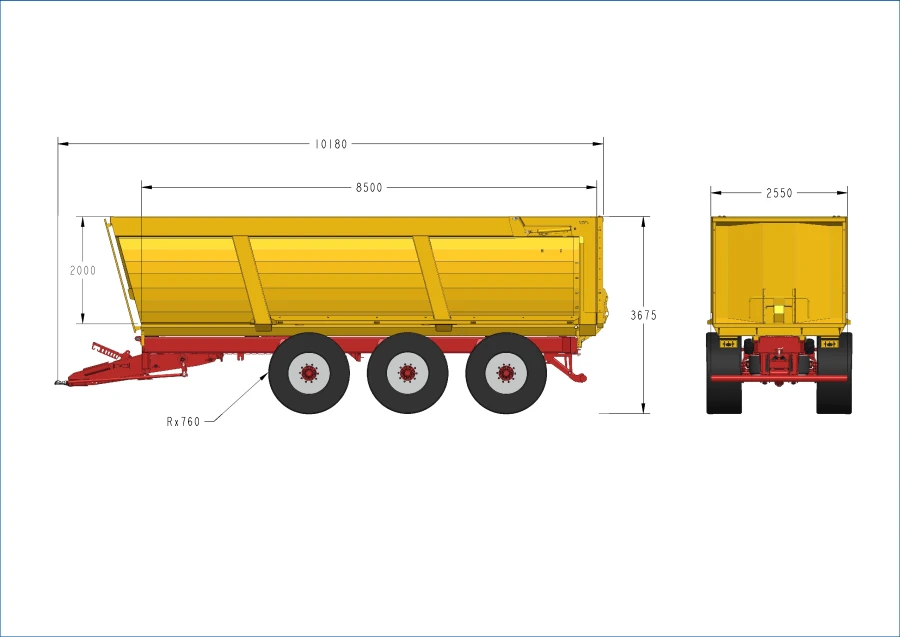

- Body dimensions: 8500 ext. x 2300 int. x 2000 int.
- Centrally located grease nipples on the main axle.
- Tipping cylinder mounted in a cardanic suspension.
- Track width: 2050 mm
- Excluding tires and wheels.
Options
This tipper trailer can be equipped with the following options:
- Steps at the front of the body
- Canvas rack on the chassis
- Canvas rack on the tailgate
- Hydraulic drawbar suspension
- Extension of the grain chute control lever on the left and/or right sides
- Hardwood protective bar attached to the top edge of the body
- Plastic protective bar attached to the top edge of the body
- Hydraulic skid shoe with hand pump
- Double-acting rear valve with six-way valve in combination with a hydraulic tailgate
- Hydraulic skid shoe with six-way valve
- 250 mm superstructure, type Teton 28
- 2 work lights at the rear
- Switch between the body and chassis in combination with 1 rear work light
- Reverse buzzer
- Rear follow-up connector
- Plastic toolbox
- Scharmüller K80 ball tow bar
- Scharmüller K50 steering connection
- Central axle grease nipples
- Painted in company color (max. 2 colors)
- VGM Teton 28 cover system
- Tailgate handles
- Commando steering rod with quick-release
- Lifting axle on the front axle
- PTO pump
- Hydraulically folding bumper
- Grain chute in the tailgate
