Agricultural tippers
Discover
Everest 28 L
Everest 28-L agricultural tipper trailers are known for their functionality, strong construction and durability! They prove themselves practically every day. VGM tipper trailers are distinguishable by their well thought out design, with a smooth loading bay made from high quality wear-resistant material. The tipper trailers have a high level of finish and a very comprehensive standard specification. VGM tippers are at home on the open road or on rough farmland.
Standard version
This tipper trailer is equipped with the following standard features:
- 10-Hole axles 150 mm. (410 x 180)
- Air axle suspension
- First and third axle forced steering
- Hydraulic support leg, operated from the tractor
- Tapering container, for easier unloading
- Rubber sprung drawbar
- Floor constructed from high quality wear-resistant steel
- Six braked wheels
- See-through grill in the container
- Grain chute in the tailgate
- Rotatable towing eye
- Hose support on the drawbar
- Bolted mudguards on the load area

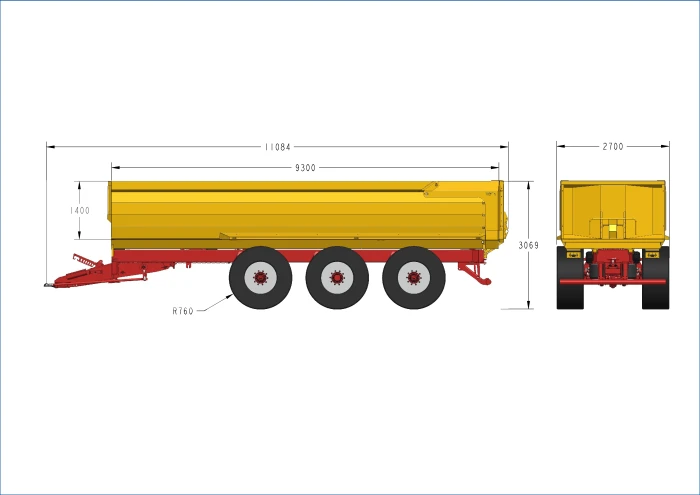

- Container dimensions: 9300 int. X 2350 int. X 1400 int.
- Tipper cylinder mounted in cardanic suspension
- Track width: 2050 mm
- EV folding bumper
- Excluding wheels and tyres
Options
This tipper trailer can be fitted with the following options:
- Stepladder at front of container
- Tarpaulin rack on the chassis
- Tarpaulin rack on the tailgate
- Catwalk on the top front of the container with stepladder option
- Hydraulic suspension
- Rubber outflow to grain chute
- Lengthening of operating handle for the grain chute on left and/or right side
- Hardwood protective beam attached to upper edge of container
- Plastic protective beam attached to upper edge of container
- Hydraulic jack leg with hand pump
- Double-acting rear valve with six-way tap in combination with hydraulic tailgate
- Hydraulic jack leg with six-way tap
- Air braking
- Hydraulic-driven rear axle steering
- Silage structure 800 mm type EV28 L
- Silage structure 250 mm type EV28 L
- Work lamp inside front of container (58R)
- 1 rear work lamp
- Switch between container and chassis in combination with 1 rear work lamp
- Reversing alarm
- rear tracking plug
- LED lighting
- Plastic toolbox
- Scharmüller K80 pick-up hitch
- Scharmüller K50 steering ball
- Central steering knuckle grease nipples
- Sprayed in company colour (max. 2 colours)
- VGM cover system type EV28 L
- Clamps on tailgate type EV
- Commando steering bar with quick release
- Lifting front axle
- PTO pump with quick release valve
- EV hydraulically folding bumper
