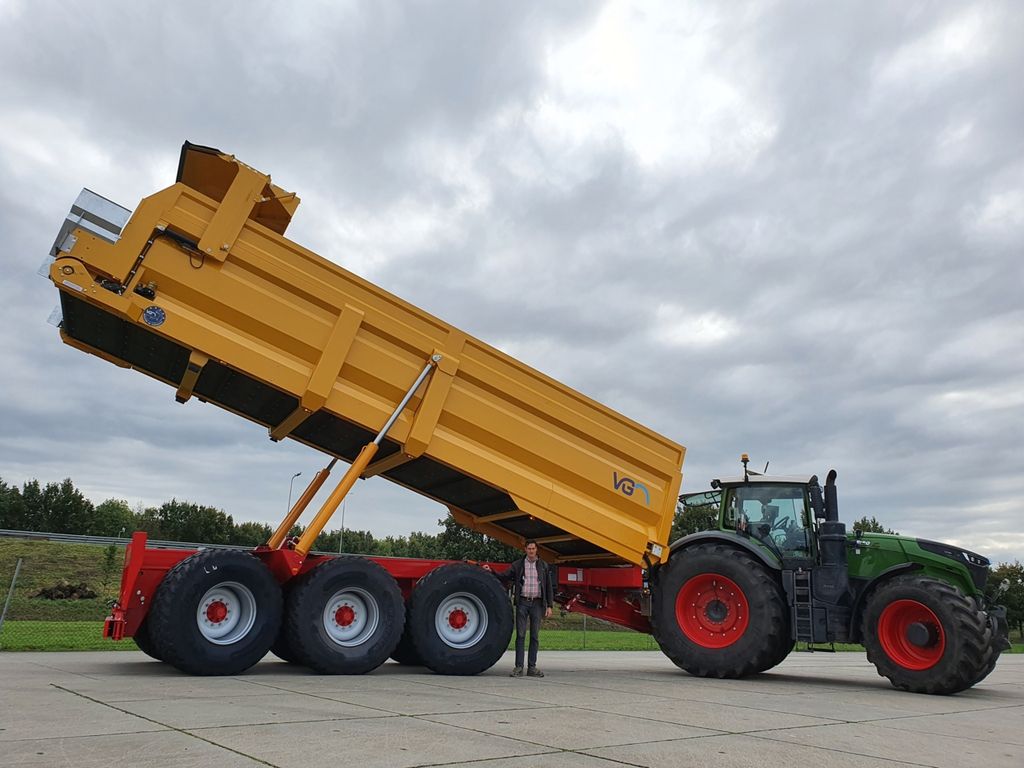

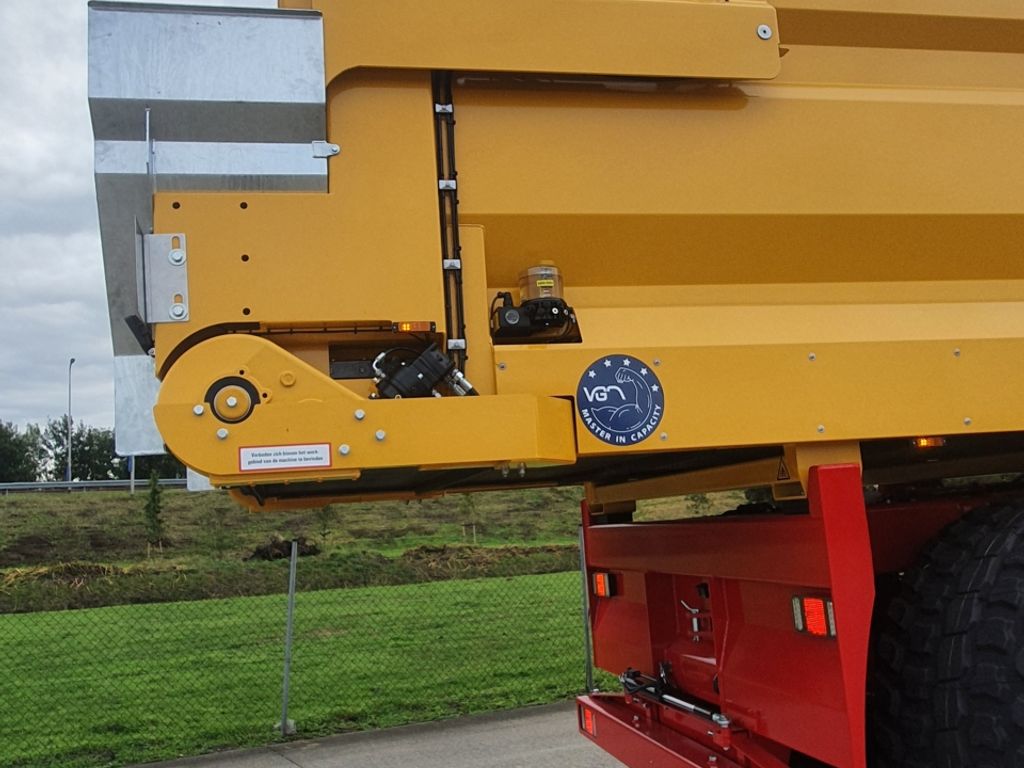

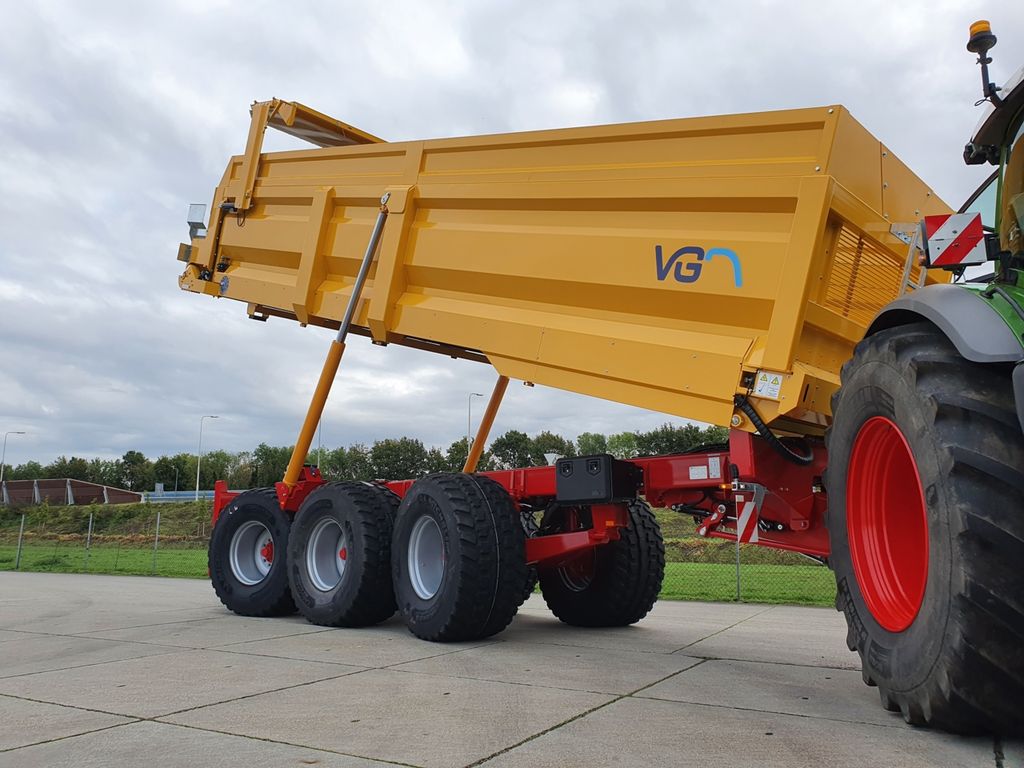

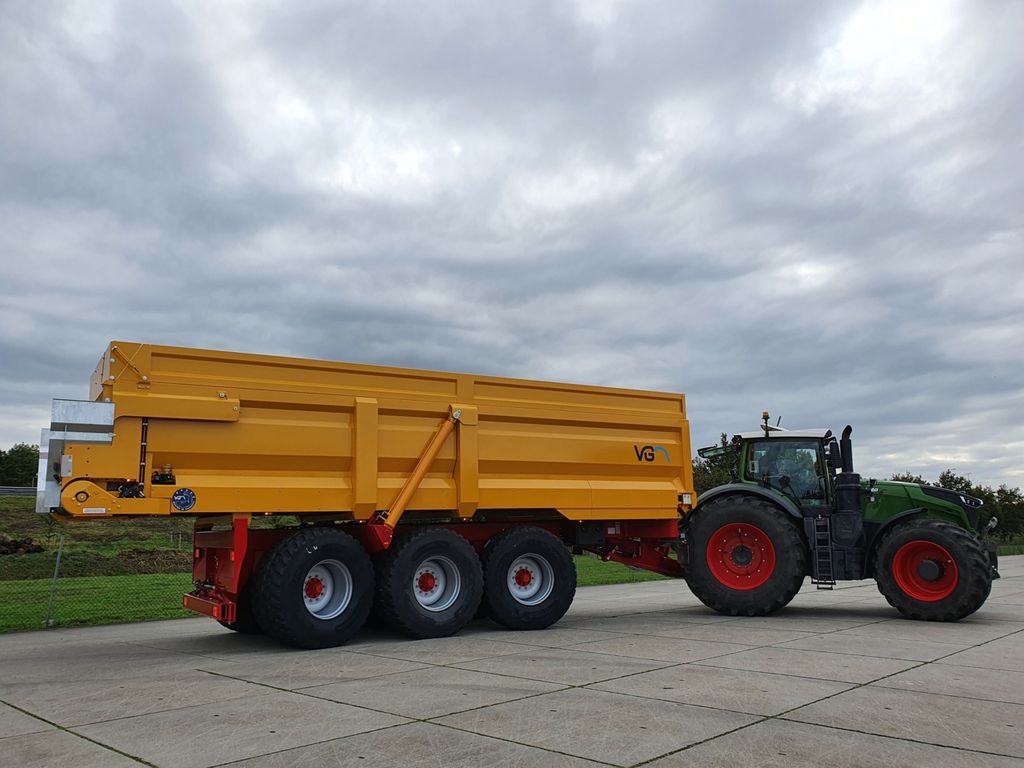

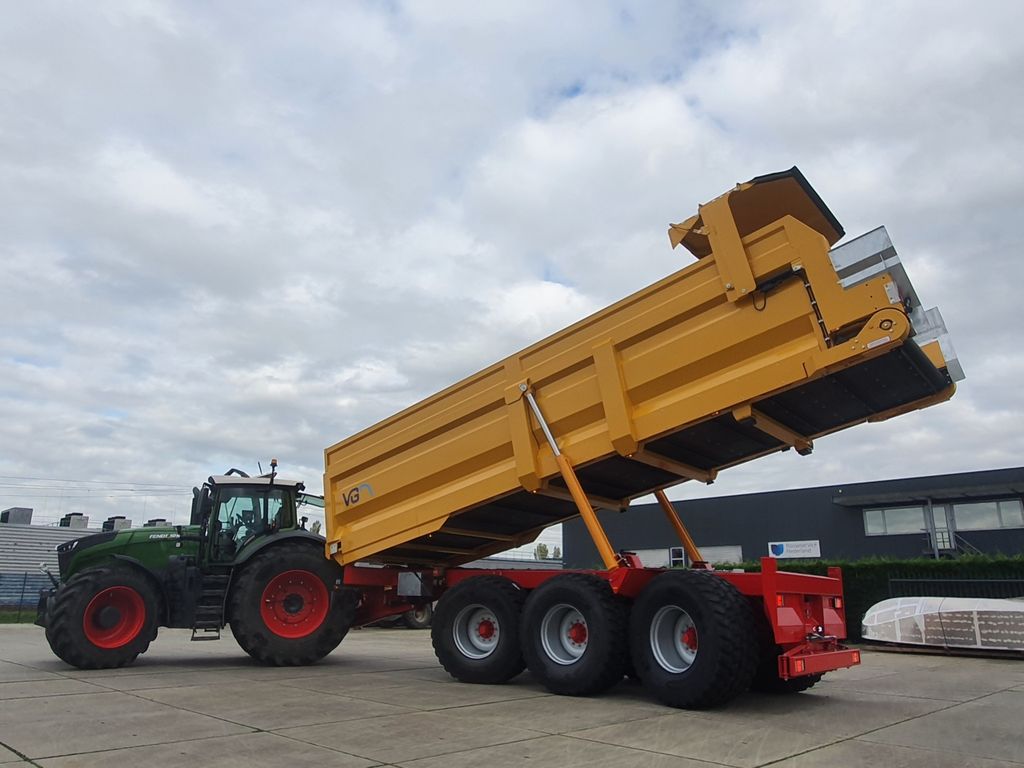

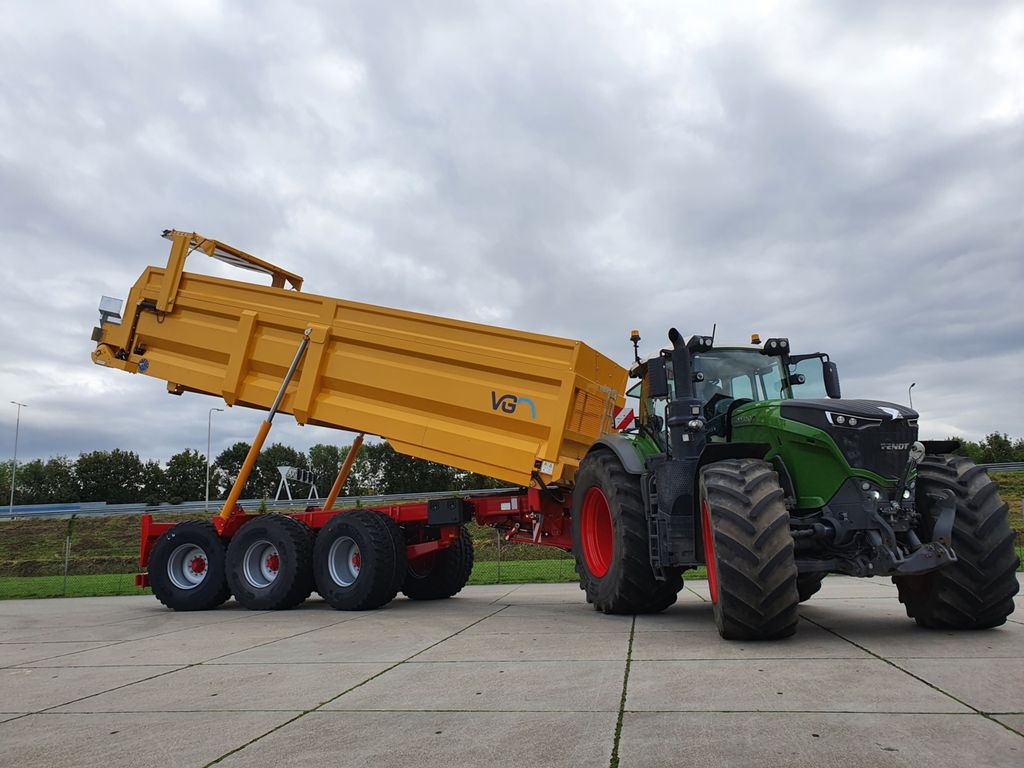

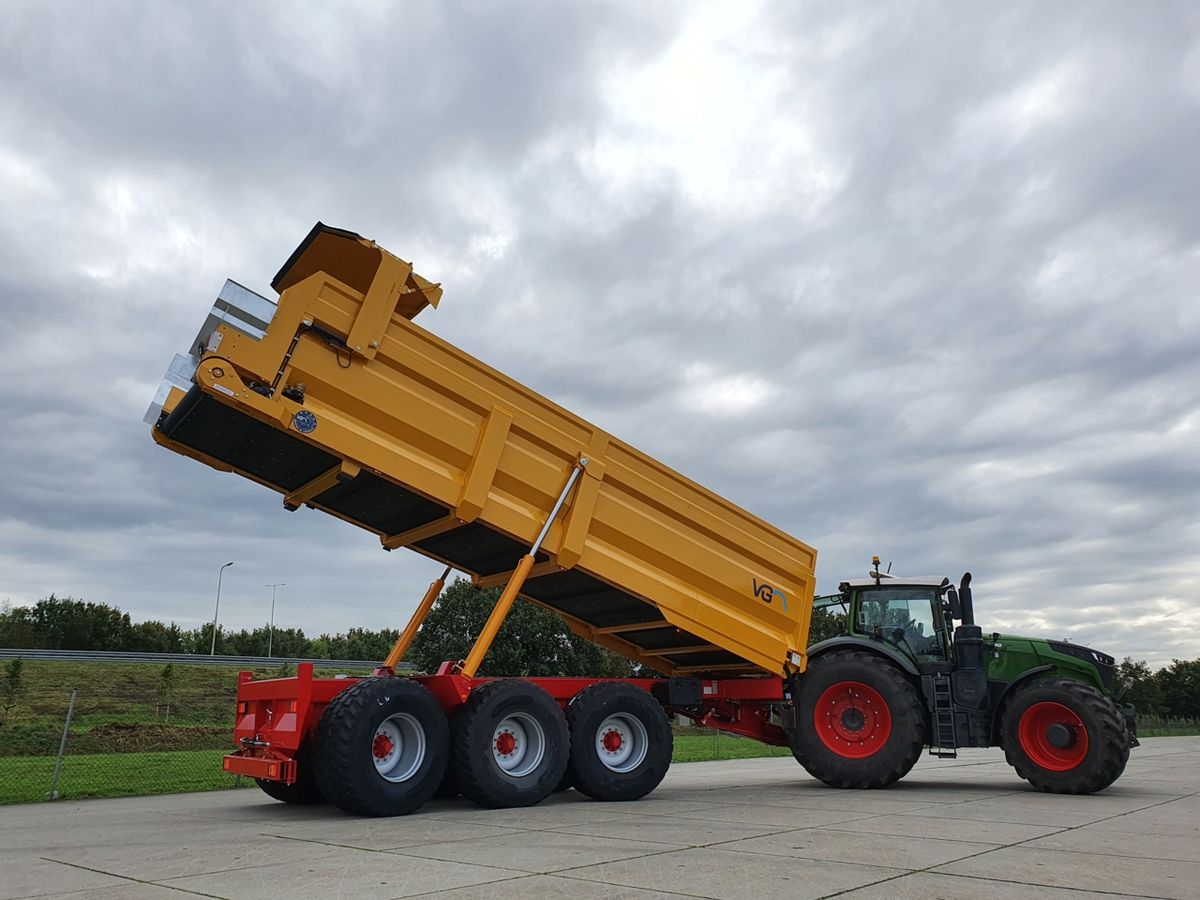

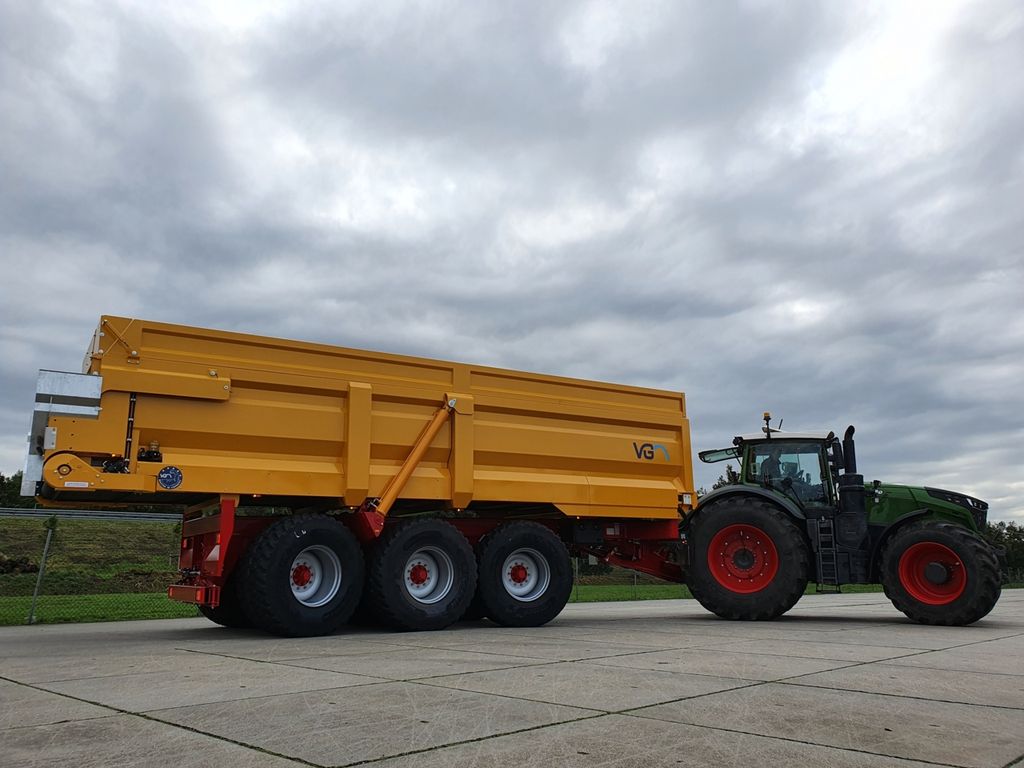

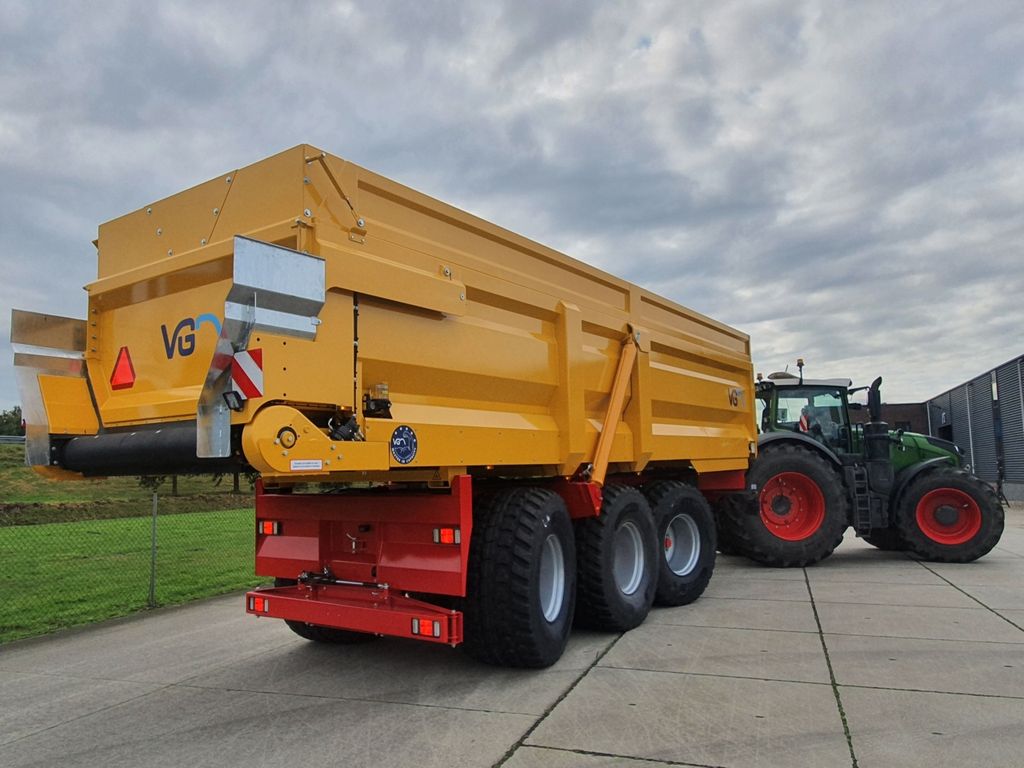

High tipper HL30

The VGM HL 30 high tipper has been specially developed to get the most from your harvest. This trailer is multifunctional due to its sophisticated construction. The high tipper is available in a tridem version and can be fitted with all of the possible options.

Standard version

"This high tipper is equipped with the following standard features:

  • Excluding wheels and tyres."
  • 10-Hole BPW axles 150 mm. (410 x 180)
  • Dynax hydraulic triangle axle suspension
  • First and third axle forced steering
  • Hydraulic support leg, operated from the tractor
  • Six hydraulically-braked wheels.
  • See-through grill in the container.
  • Perimeter lighting
  • LED lighting
  • Rotatable towing eye.
  • Hose support on the drawbar.
  • Rubber sprung drawbar.
  • Container dimensions: 9800 int. X 2640 int. X 1340 int.
  • Rubber conveyor belt driven by 2 hydraulic motors
  • Unloading height 4.5 mtr.
  • 2 double-acting tipping cylinders
  • Radiographic remote control
  • Hydraulic functions on Load sensing
  • Grease nipples on central main axle.
  • Track width: 2050 mm.

Options

"This high tipper trailer can be fitted with the following options:

  • Stepladder at front of container
  • Tarpaulin rack on the chassis
  • Catwalk on the top front of the container in combination with stepladder option
  • Hardwood protective beam attached to upper edge of container
  • Plastic protective beam attached to upper edge of container
  • Hydraulic suspension
  • Hydraulic jack leg with hand pump
  • Double-acting rear valve with six-way tap in combination with hydraulic tailgate
  • Hydraulic jack leg with six-way tap
  • ALR Air braking
  • Air braking in combination with hydraulic braking
  • ALR valve in combination with hydraulic suspension and air braking
  • Hydraulic-driven rear axle steering
  • Work lamp inside front of container (58R)
  • rear work lamps
  • Switch between container and chassis in combination with 1 rear work lamp
  • Reversing alarm
  • rear tracking plug
  • Plastic toolbox
  • Scharmüller K80 pick-up hitch
  • Scharmüller K50 connection for steering
  • Central steering knuckle grease nipples
  • Sprayed in company colour (max. 2 colours)
  • Commando steering bar with quick release
  • rear camera
  • Fall breaker
  • Hydraulic sliding bumper
  • Chain lubrication
  • Lifting front axle
  • Semi-automatic height control
  • Silage structure 400 mm type EV30
