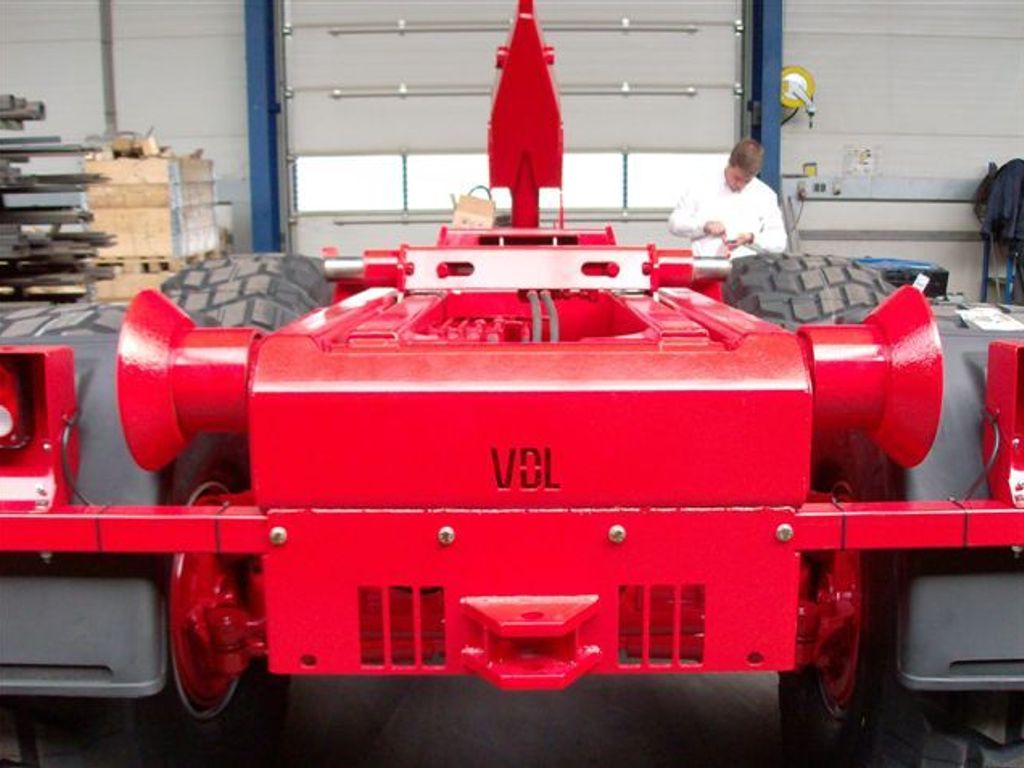

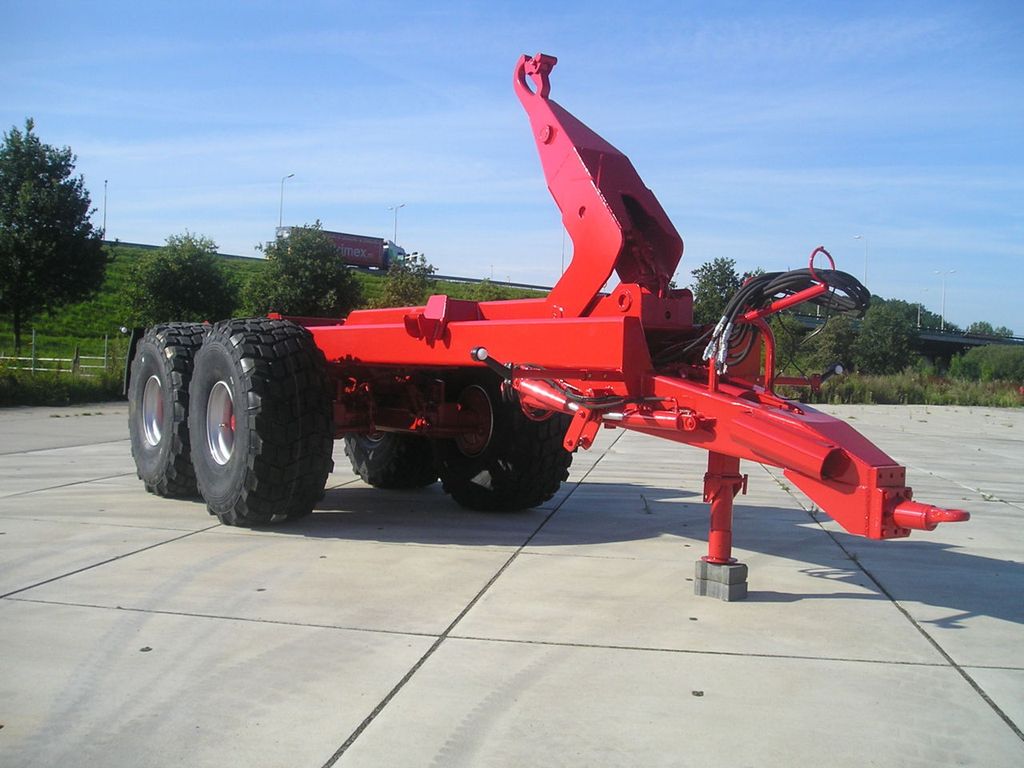

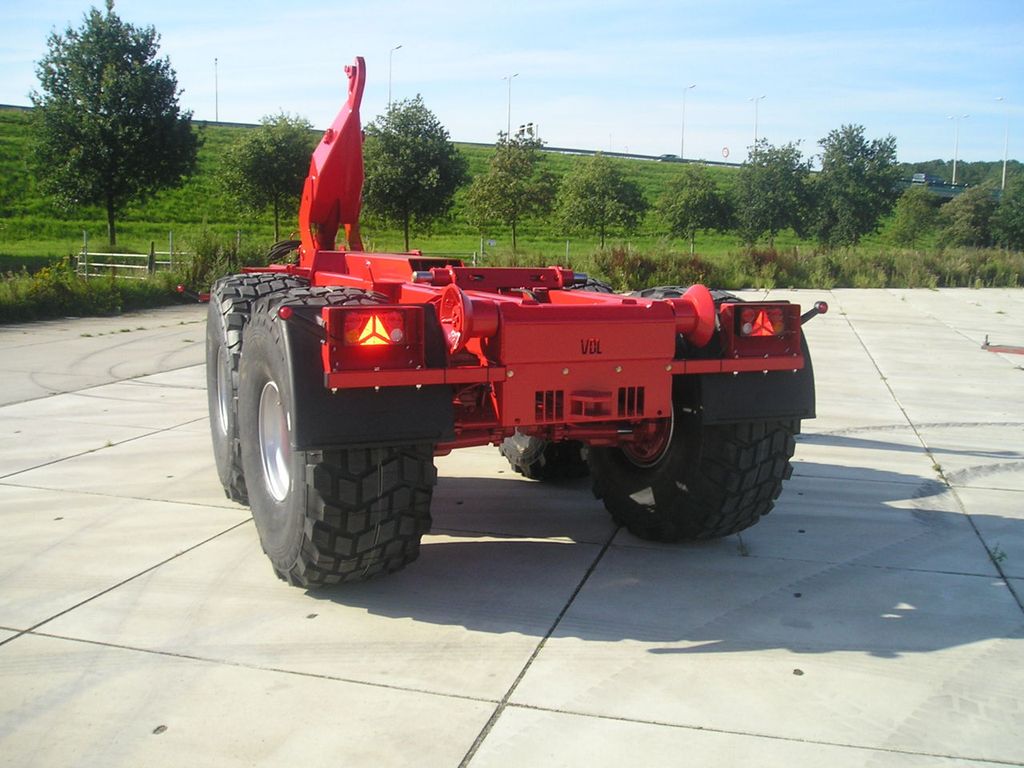

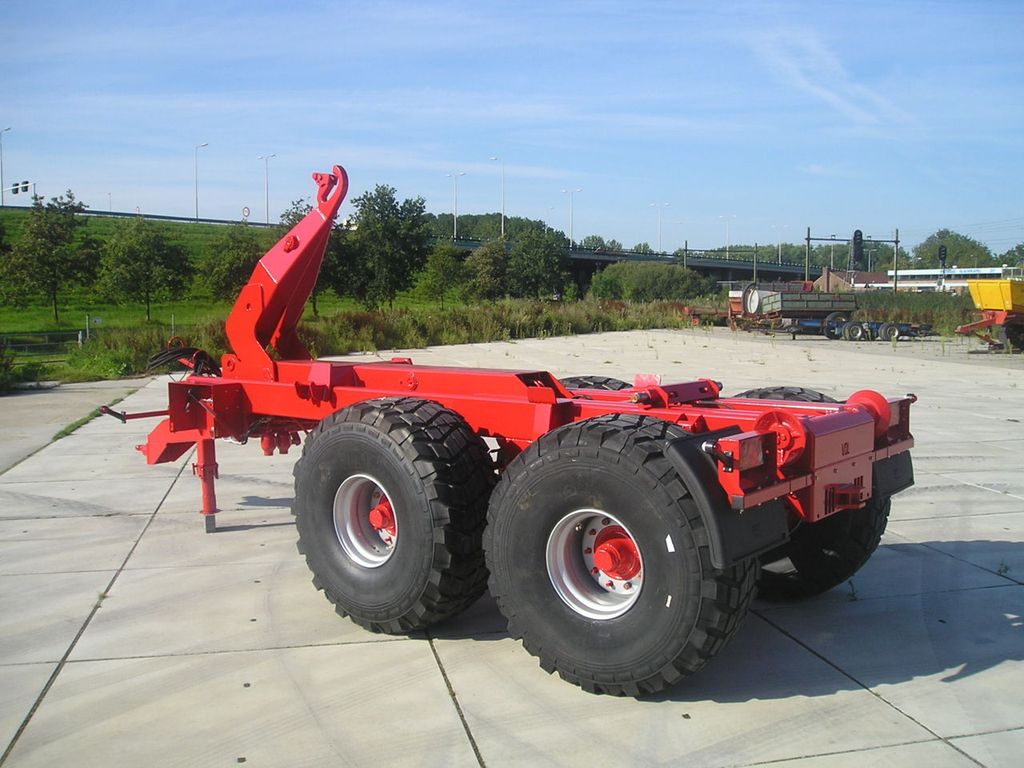

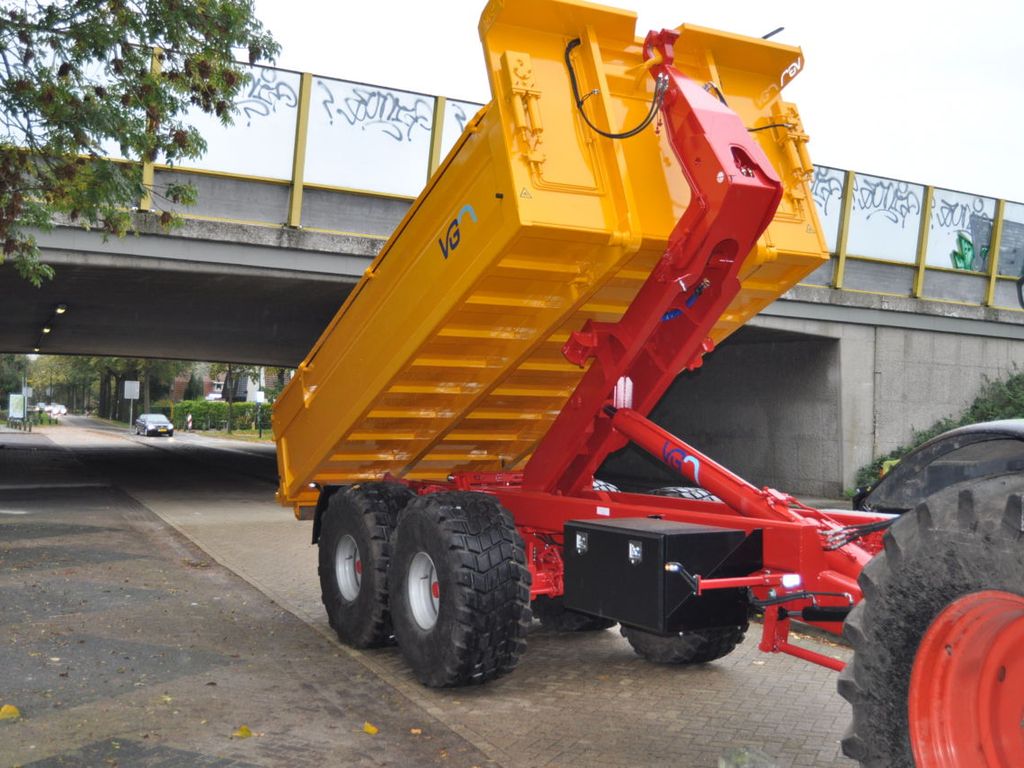

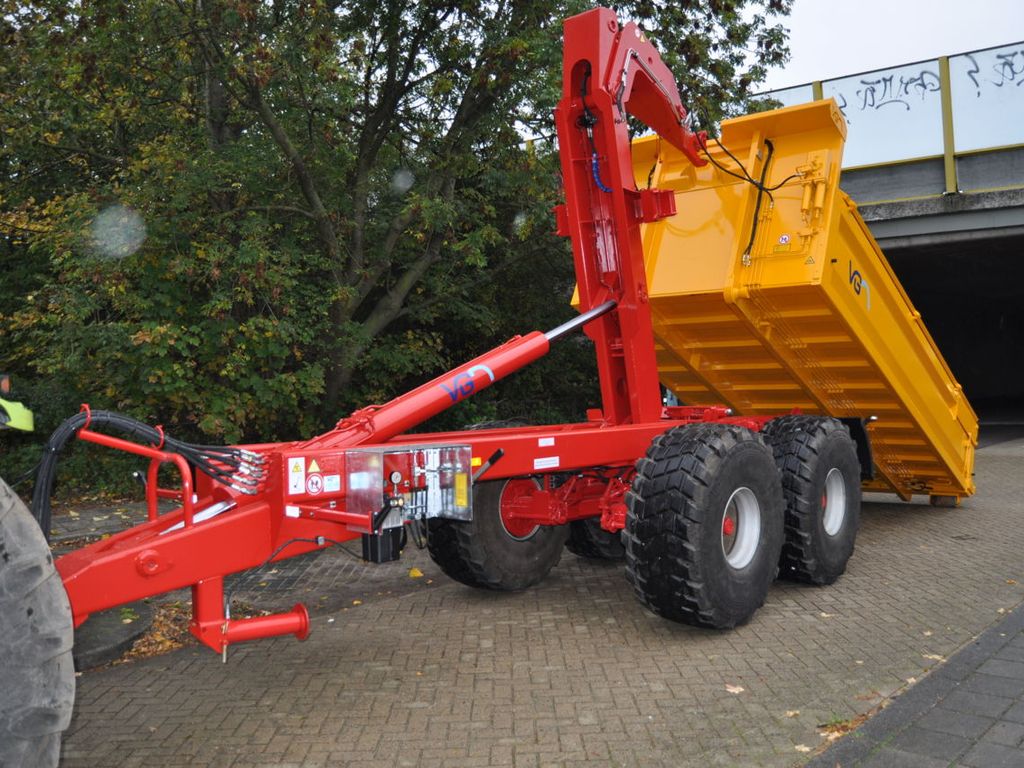

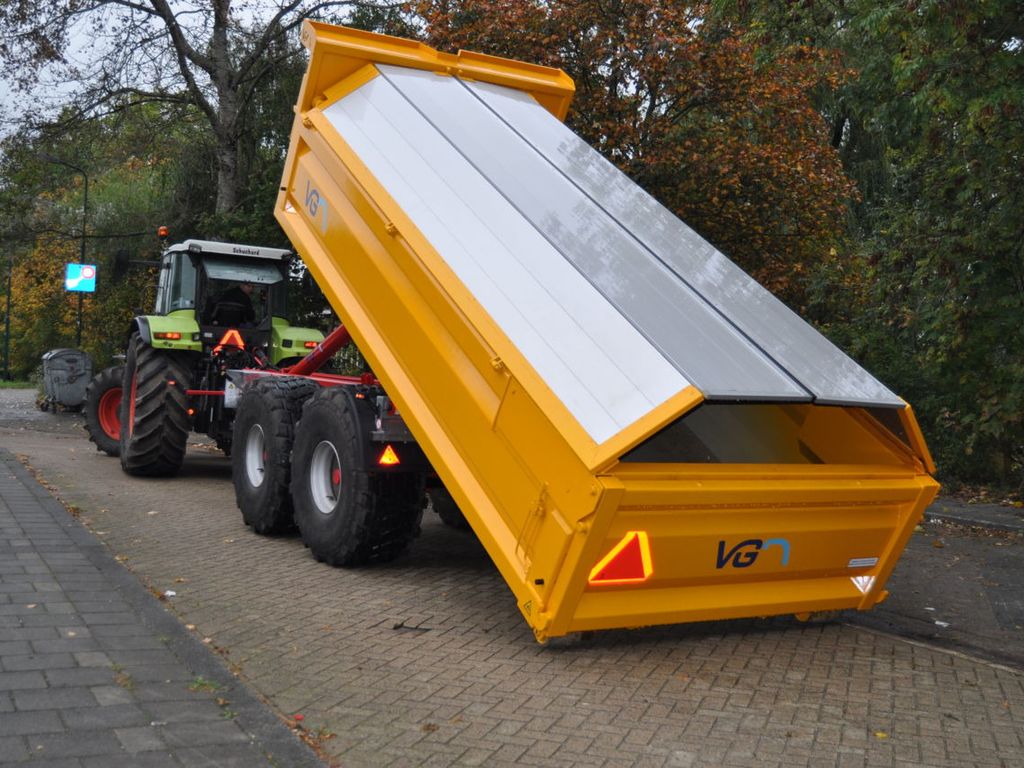

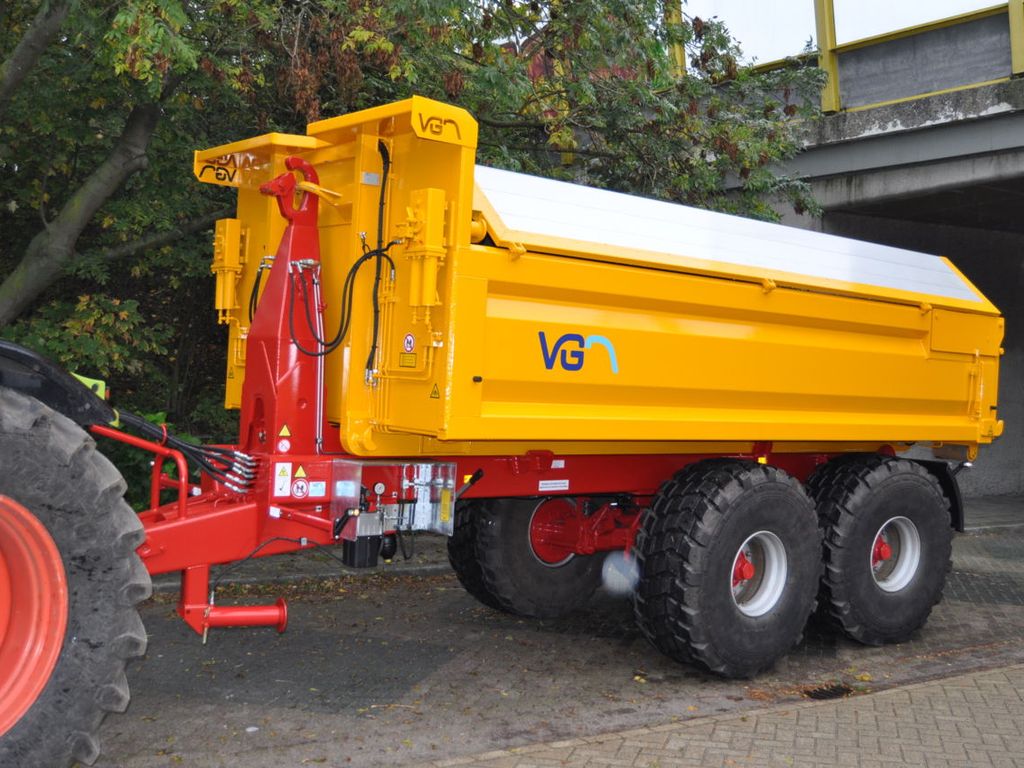

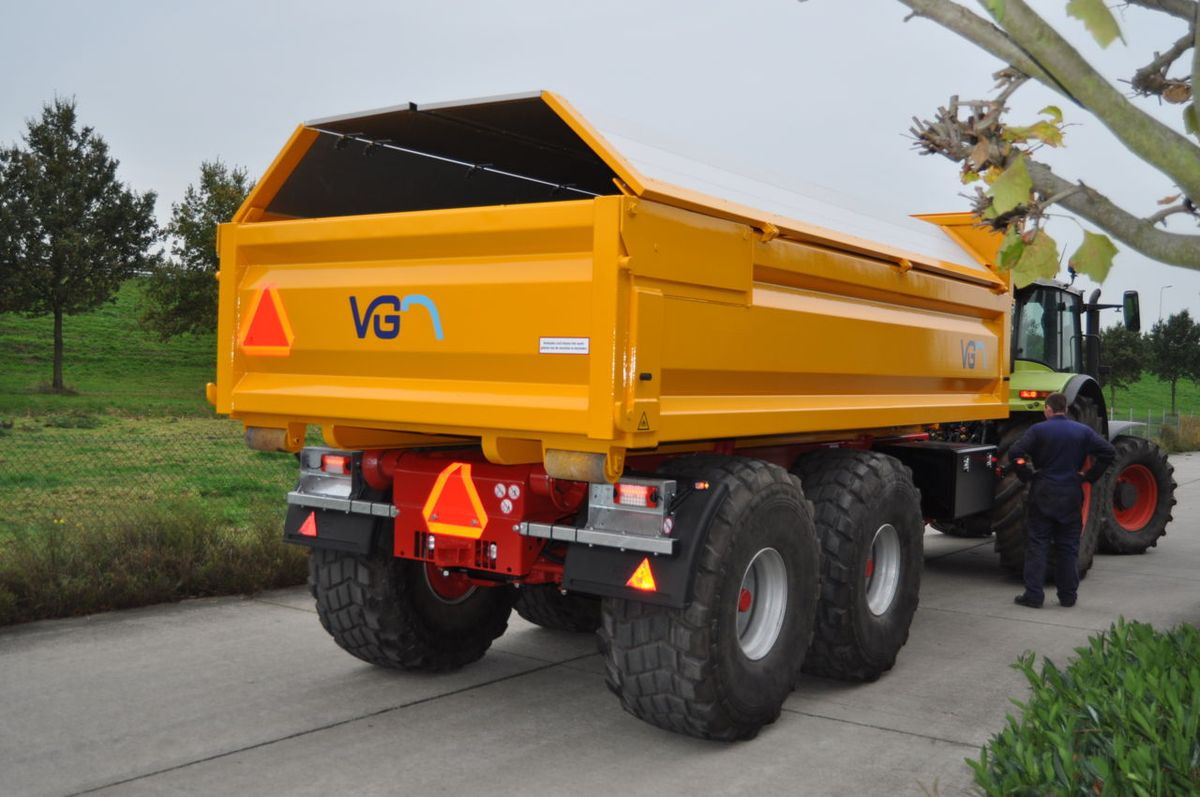

Olympus 17

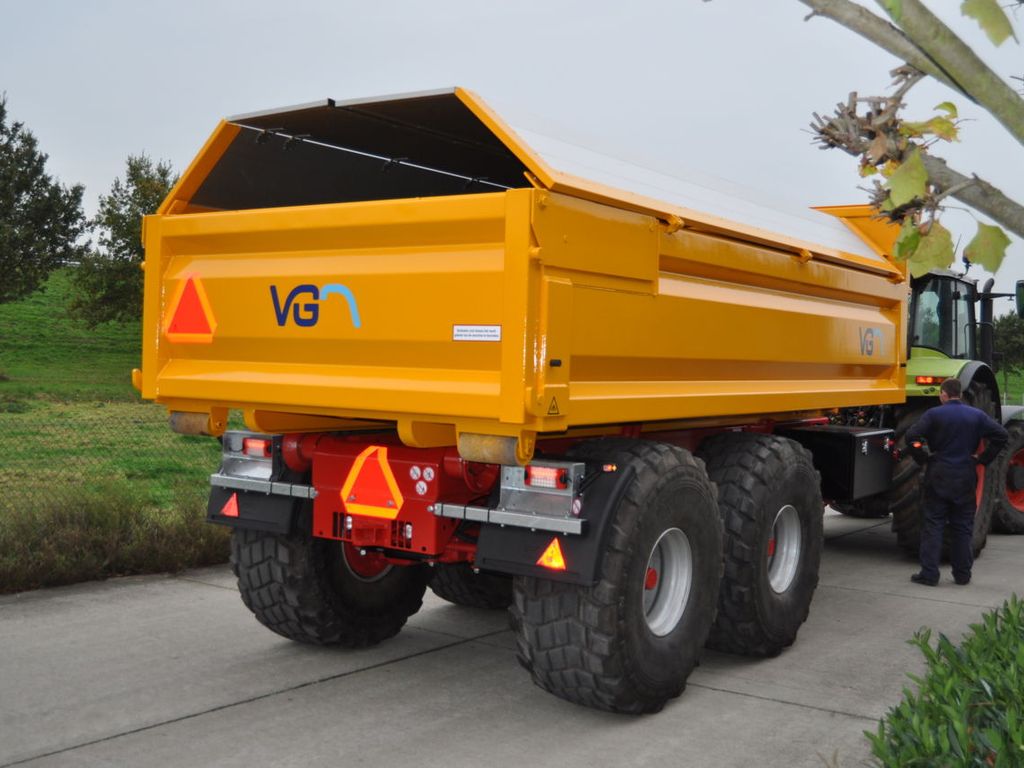

The Olympus 17 container carrier from VGM enables you to undertake several different activities with an undercarriage. For example, due to the swift changeover times, with this system it is possible to carry out container transport or in the spring to exchange between a soil container and a silage container. The Olympus 17 container carrier is available in various body options. This ensures an all-round machine, suitable for any business.

Standard version

Olympus 17 Container carrier is equipped with the following standard features:

  • 10-Hole BPW axles 150 mm (410 x 180)
  • Pendulum tandem
  • Hydraulic folding support leg, operated from the tractor
  • Four hydraulically braked wheels
  • Perimeter lighting
  • Fixed, non-adjustable drawbar
  • Absorption capacity approx. 17 tons (including container) at 200 bar, (15.3 tons at 180 bar)

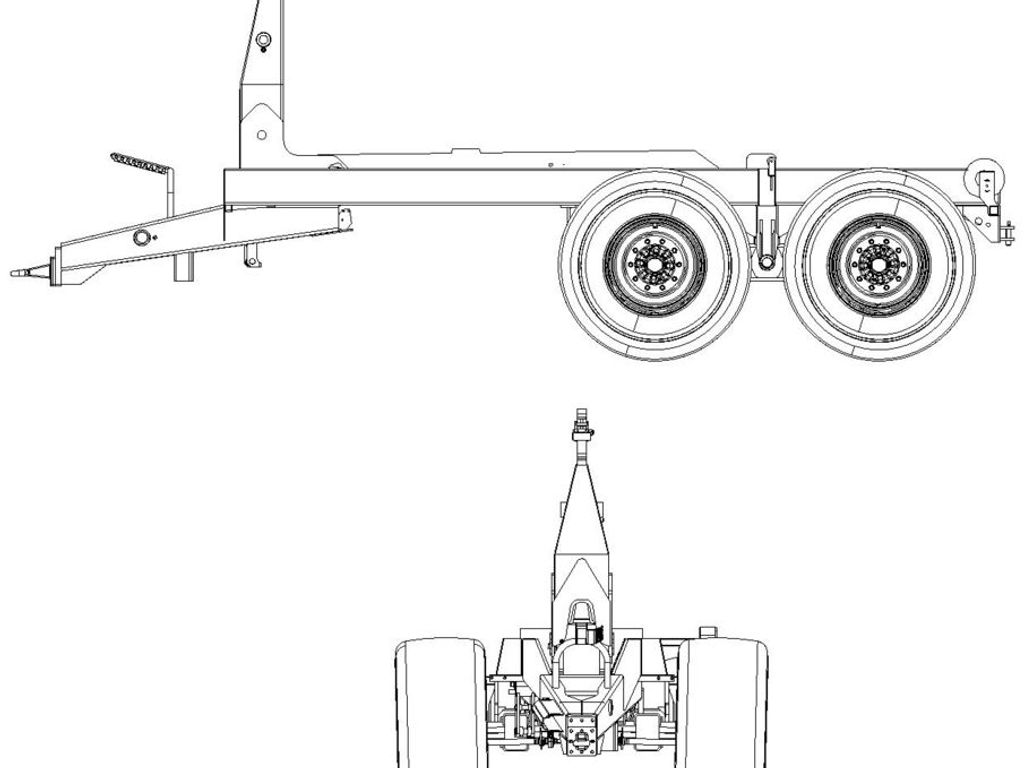

  • System length 5200mm (centre of hook- rear of chassis approx. 5070mm
  • Maximum container length approx. 5250mm (overlap approx. 480mm)
  • Minimum container length approx. 4000mm

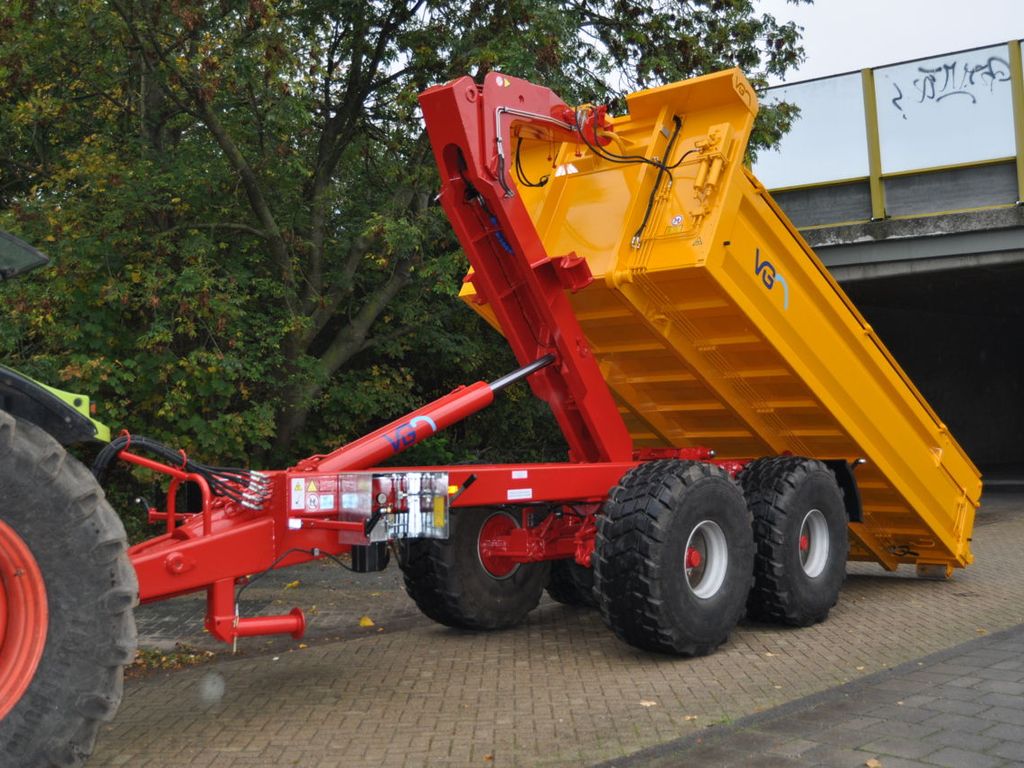

  • Tilt angle approx. 54 degrees

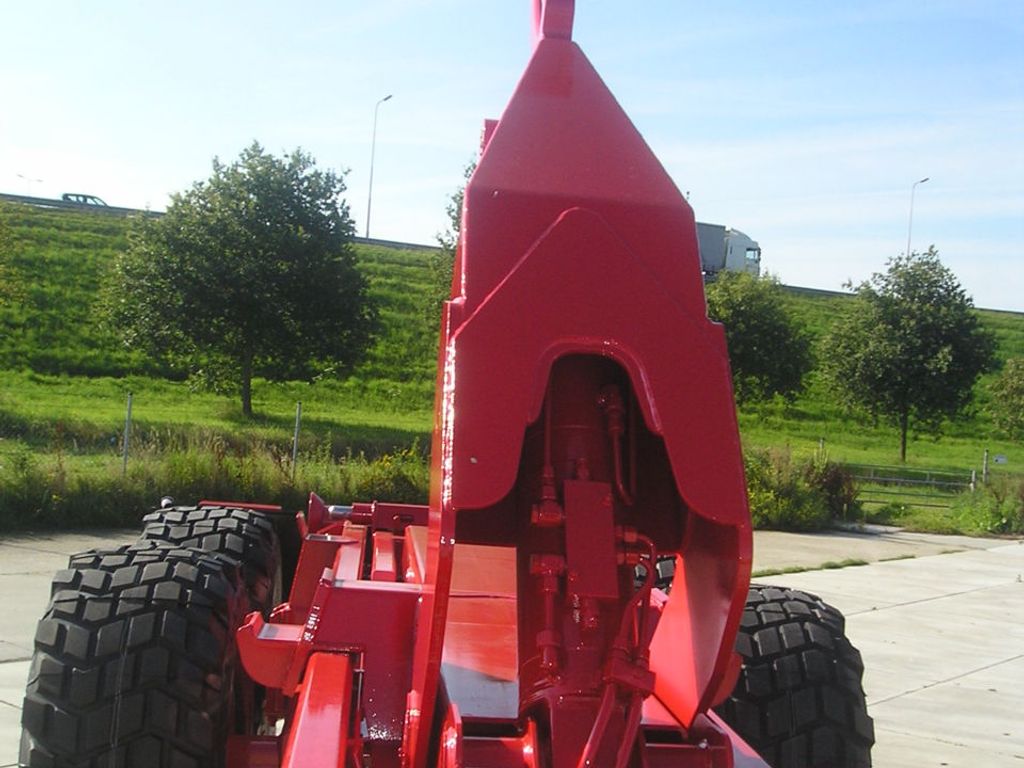

  • Hook height hook arm 1450mm
  • Slide travel approx. 1090mm (adjustment is by rotation of the articulated arm instead of by the sliding
  • Hydraulic container locking operating from inside to outside
  • Hydraulic function hook arm installation operated by valves through tractor hydraulics
  • Automatic hydraulic axle stamping on rear axle of tandem
  • Grease nipples on central main axle
  • Track width: 1950 mm
  • Excluding wheels and tyres"

Options

Olympus 17 Container carrier can be fitted with the following options:

  • Hydraulic jack leg with hand pump
  • Hydraulic jack leg with six-way tap
  • Air braking
  • Air braking combined with hydr.
  • Air braking + ALR valve
  • Hydraulically driven steering
  • Lockable control box
  • 2 rear work lamps
  • rear tracking plug
  • LED lighting
  • Reversing alarm
  • Plastic toolbox
  • Scharmüller K80 pick-up hitch
  • Scharmüller K50 steering ball
  • PVG preparation
  • Central steering knuckle grease nipples
  • Master pressure cylinder
  • Sprayed in company colour (max. 2 colours
  • Automatic lubrication system
  • Commando steering bar with quick release
  • ZK-2 Bumper folding TüV-PVG
  • ZK-2 Bumper"
