Container carriers

Ha30

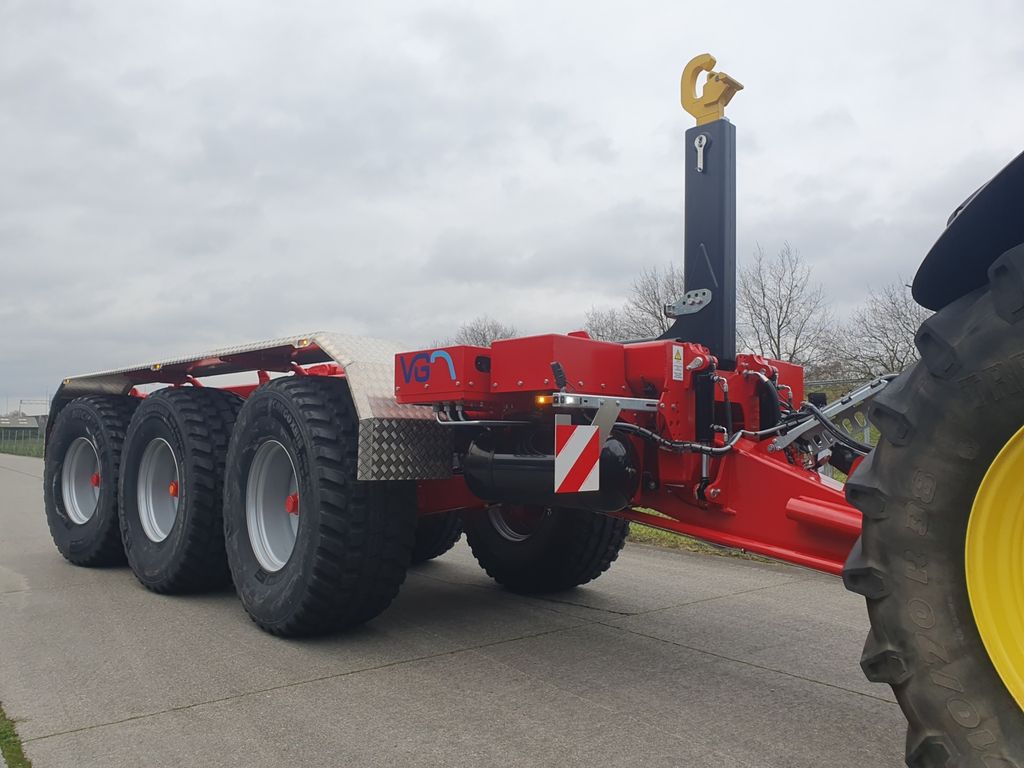

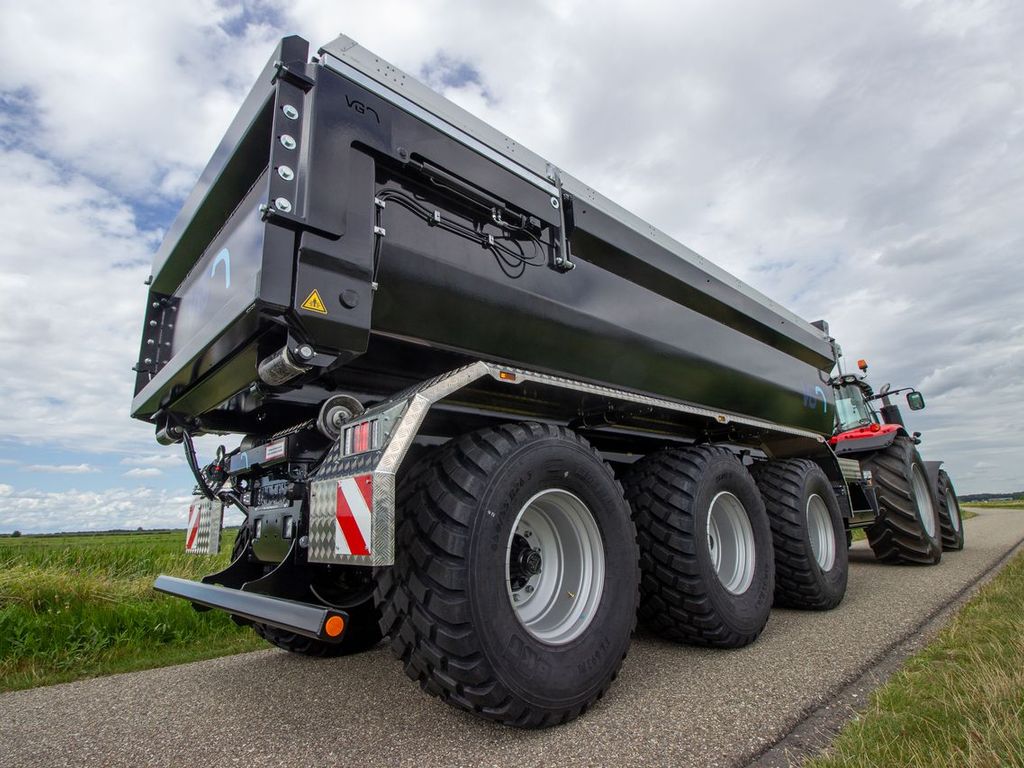

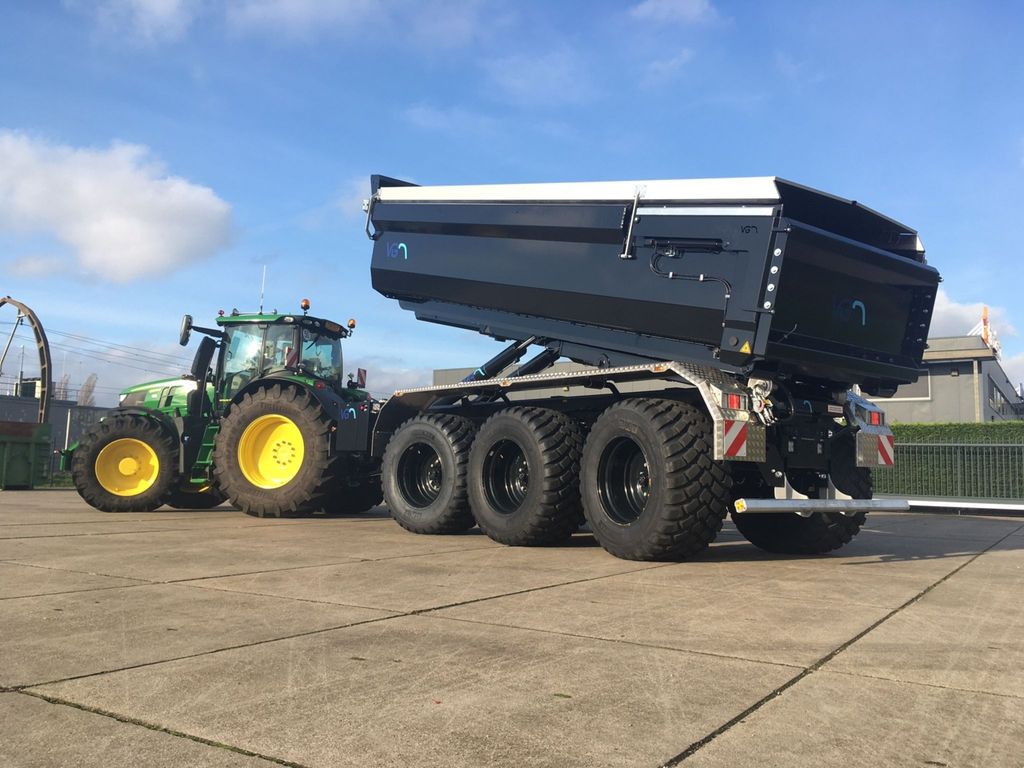

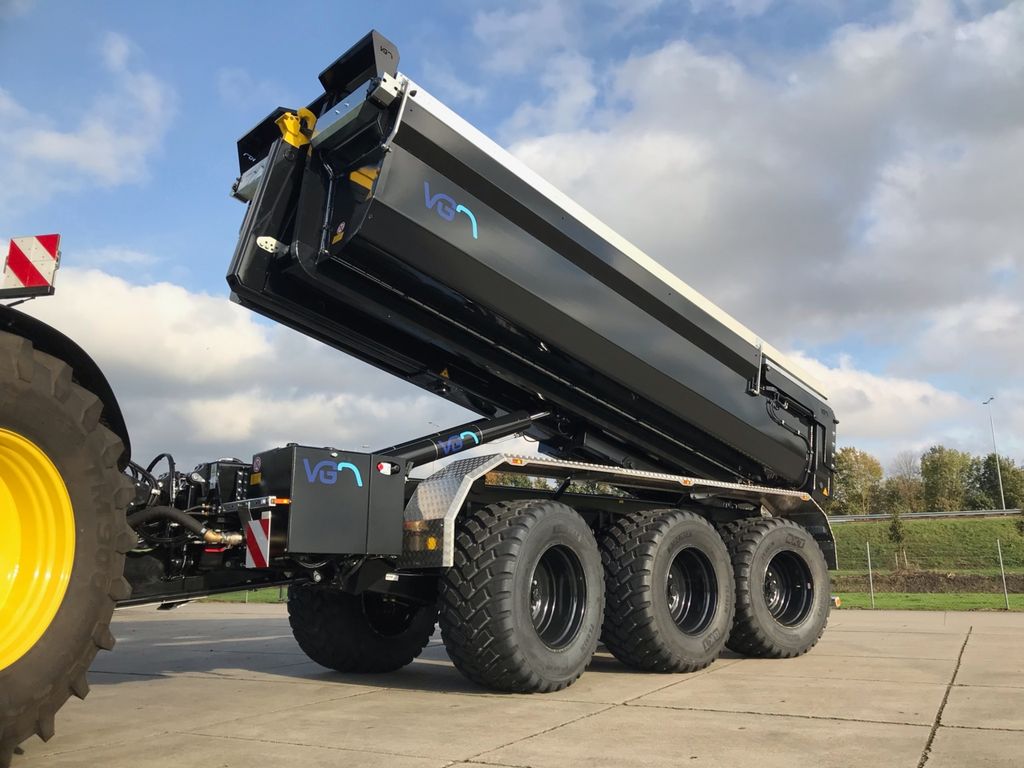

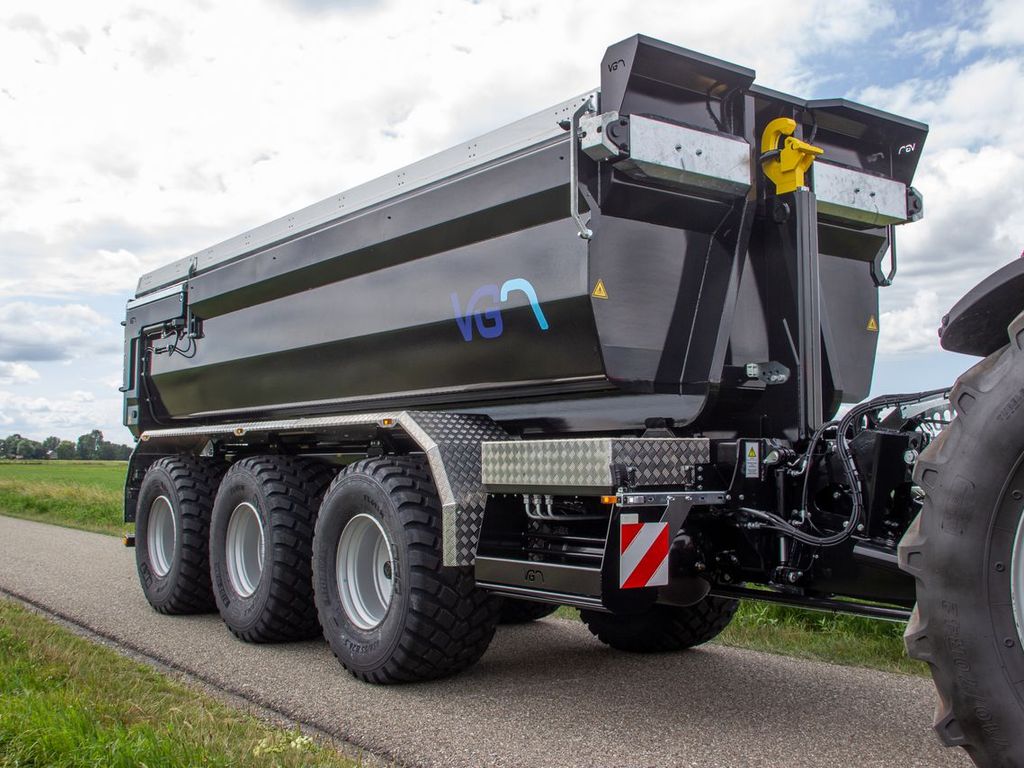

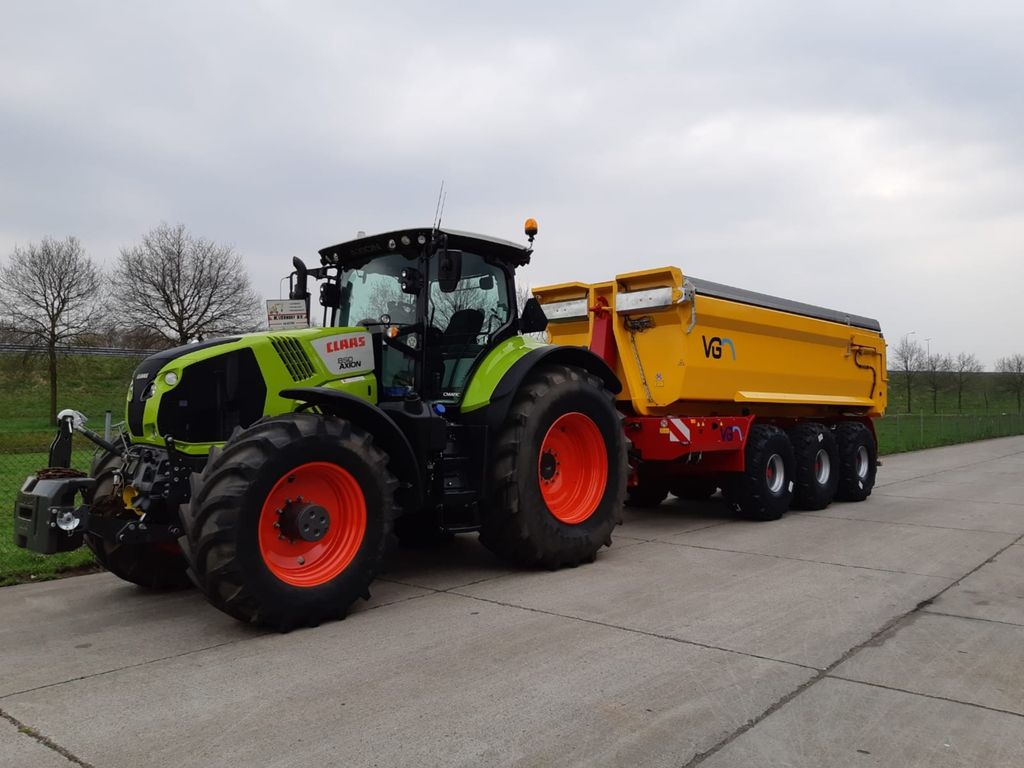

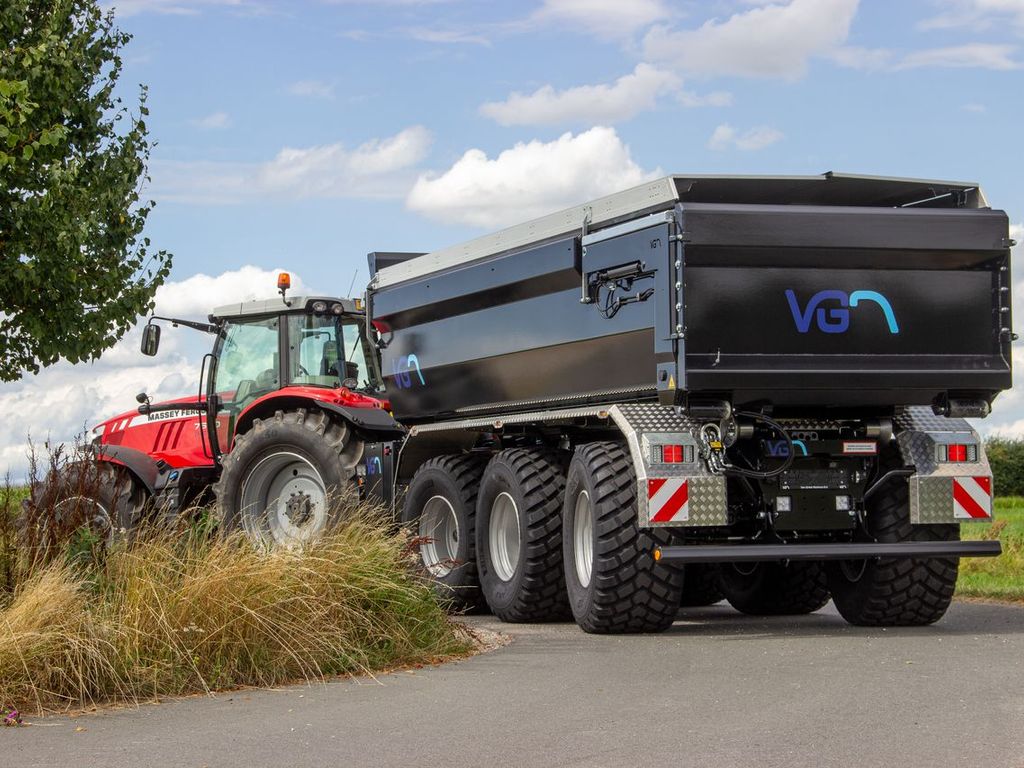

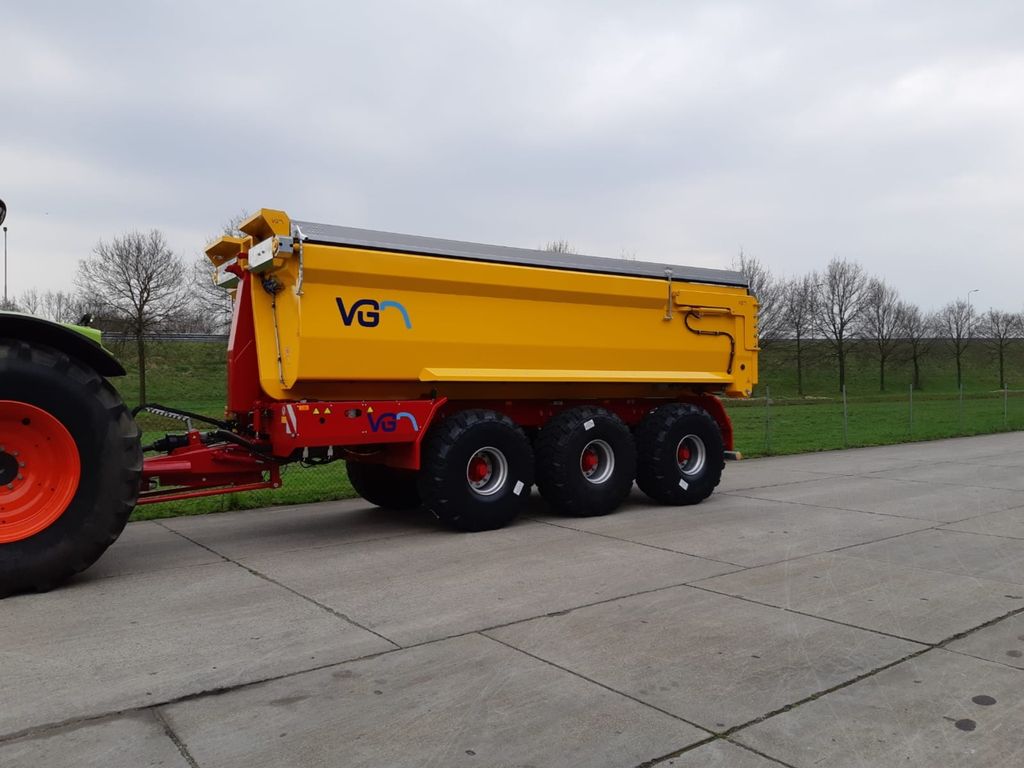

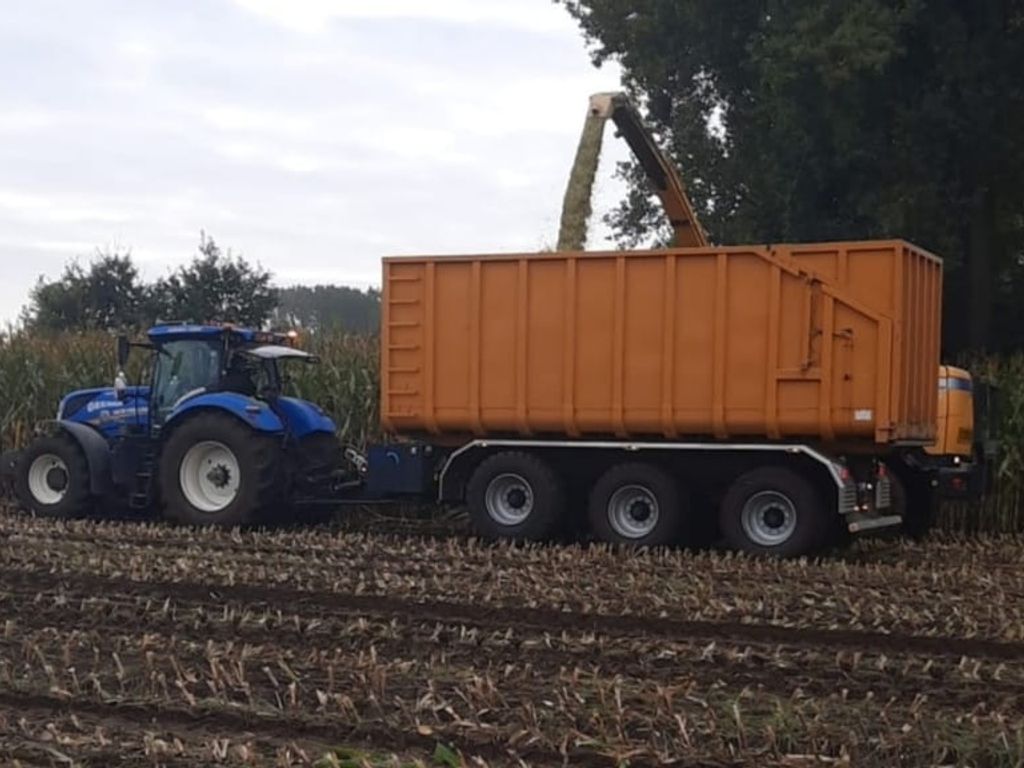

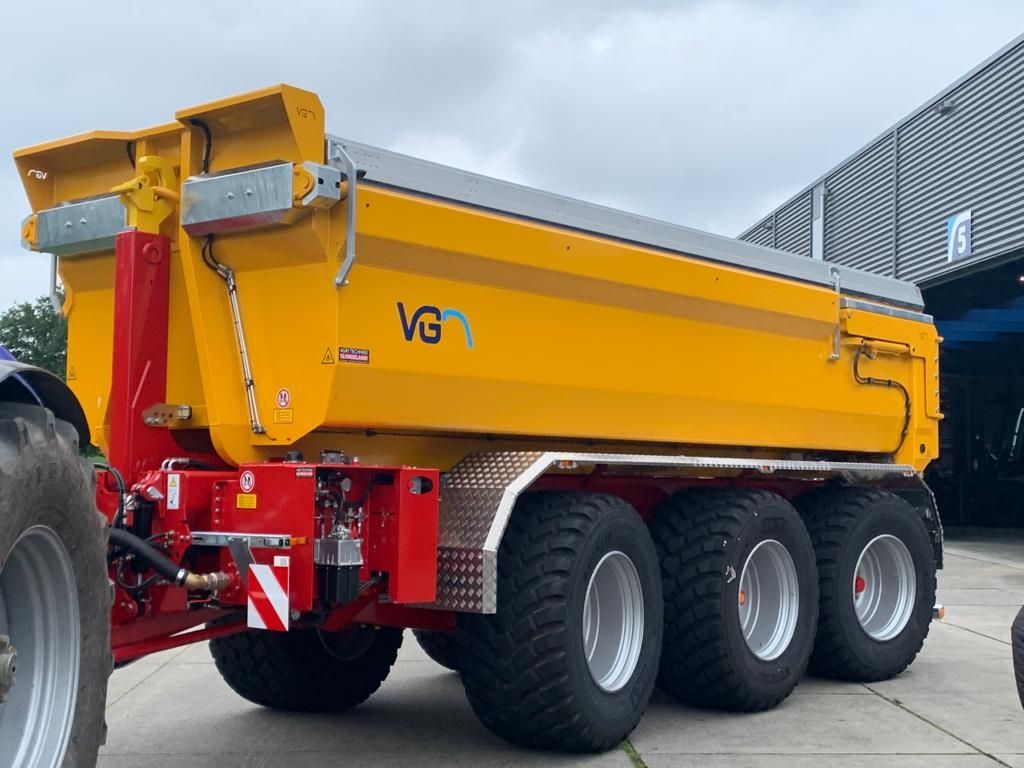

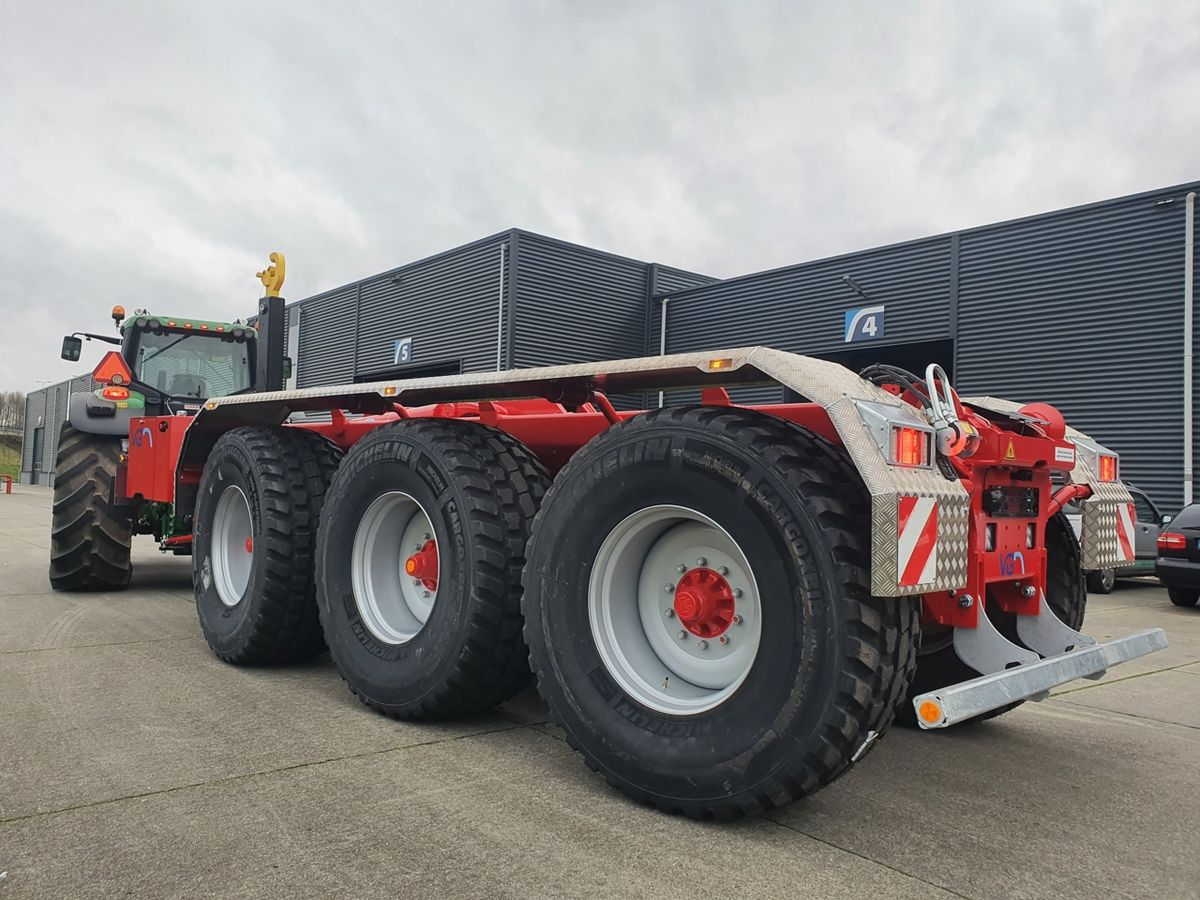

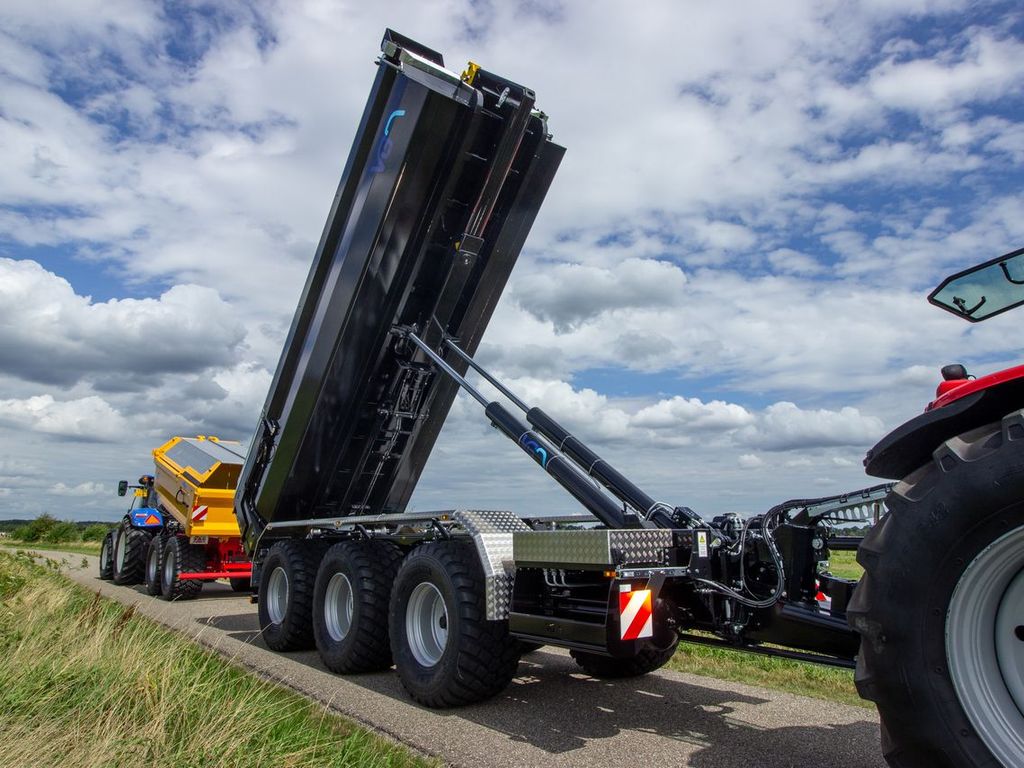

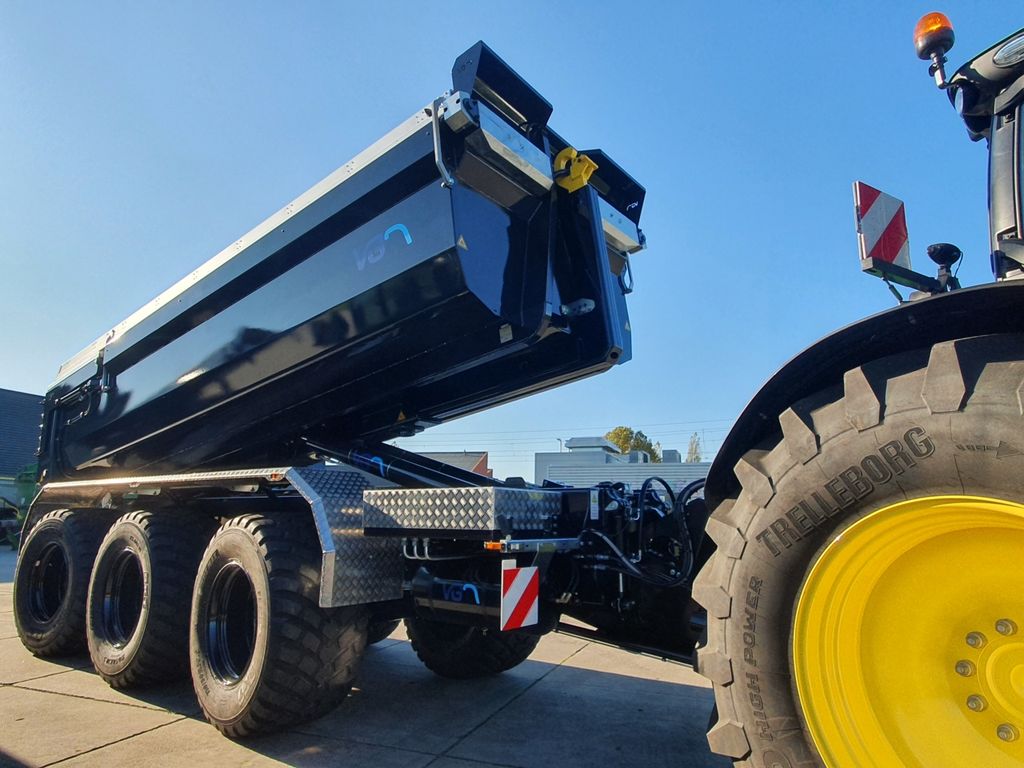

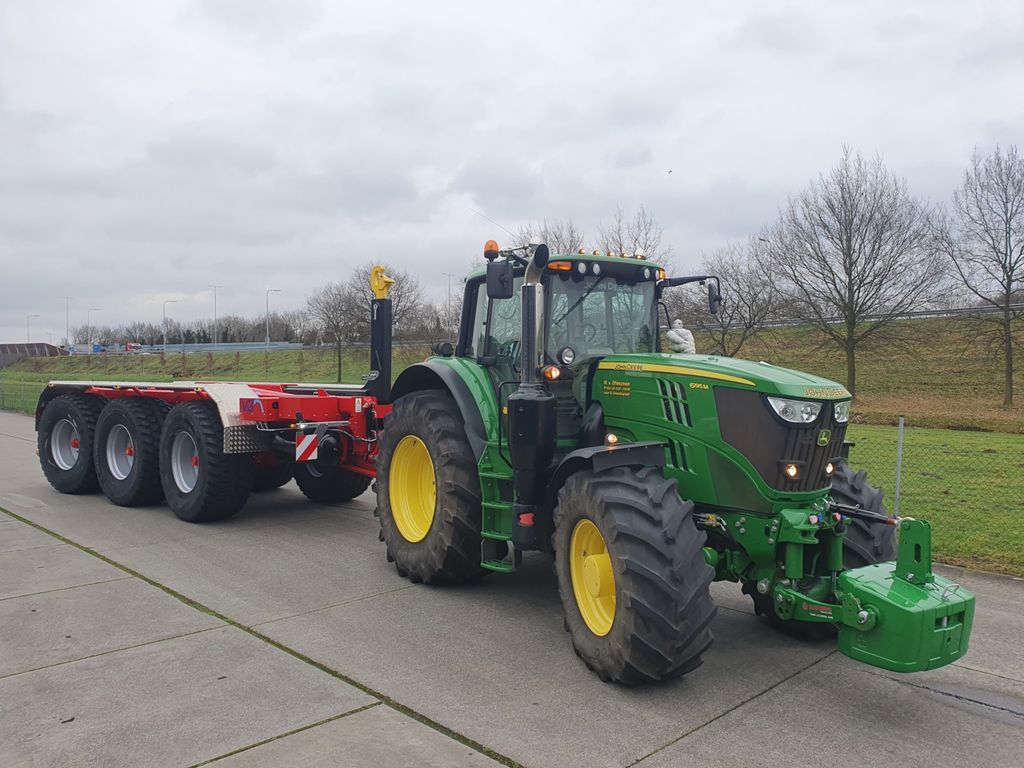

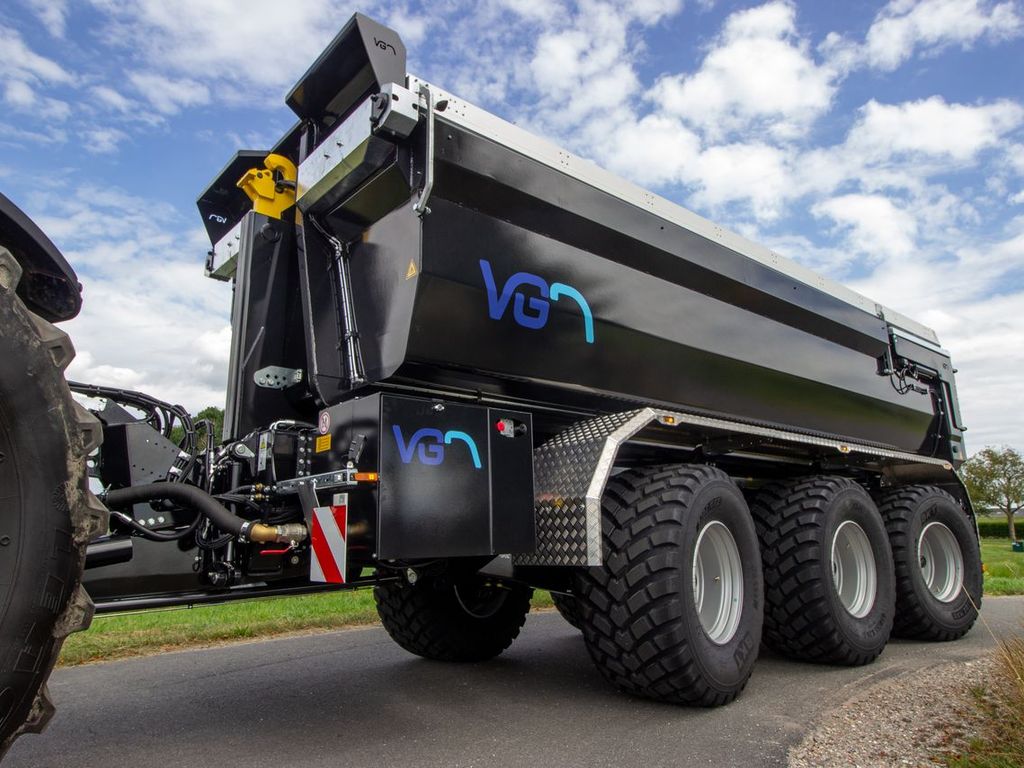

The container carrier from VGM enables you to undertake several different activities with an undercarriage. For example, due to the swift changeover times, with this system it is possible to carry out container transport or in the spring to exchange between a soil container and a silage container. The VGM container carrier is available in various body options. This ensures an all-round machine, suitable for any business.

Standard version

"This Container carrier is equipped with the following standard features:

  • Capacity 30,000kg
  • Tri-axle heavy transport container carrier
  • 10-Hole axles 150 mm (410 x 180)
  • Hydraulic double-acting support leg
  • Perimeter lighting
  • Rotatable towing eye
  • Rear trailer hitch
  • Hose support on the drawbar
  • Hydraulically suspended drawbar
  • Track width: 2050 mm
  • Excluding wheels and tyres
  • System length 6.70 mtr.
  • Container length 5.00-7.30 mtr.
  • Tilt angle 54
  • Slide travel 1.5mtr.
  • Hook height 1450
  • Electrically operated from within the cab
  • Hydraulic inner locking
  • 110 litre/min hydraulic pump
  • Wide angle PTO
  • 6 air-braked wheels (410 x 180)
  • First and third axle forced steering, fixed second axle
  • All three axles DynAx hydraulically suspended
  • Dispersion 1800mm
  • Axle stamping
  • Blasted
  • Sprayed in 2K EP primer and 2K PU finishing coat"

Options

"This Container carrier can be fitted with the following options:

  • Hydraulic drawbar suspension
  • Hydraulic jack leg with hand pump
  • Hydraulic jack leg with six-way tap
  • Lockable control box
  • 2 rear work lamps
  • Rear tracking plug
  • LED lighting
  • Reversing alarm
  • Plastic toolbox
  • Scharmüller K80 pick-up hitch
  • Scharmüller K50 steering ball
  • PVG preparation
  • Sprayed in company colour (max.1 colour
  • Automatic lubrication system
  • Scoop support on the underside of container
  • ZK-2 folding bumper TüV-PVG
  • Master pressure cylinder
  • ZK-2 bumper
  • Semi-automatic height control
  • Mechanically adjustable hook height 1450 or 1570
  • Semi-automatic height control
  • Golstein weighing system
  • Tiltable hook pole
  • Lifting axle
  • Tarpaulin rack
  • Orange LED side illumination"
