Agricultural tippers

EV 30

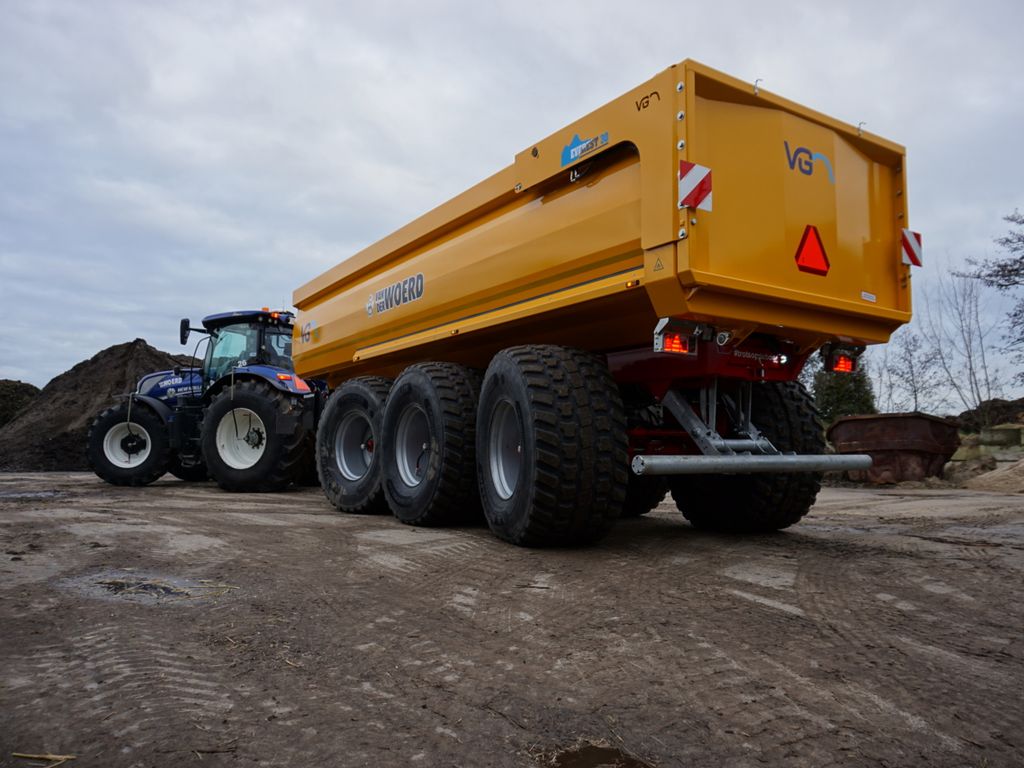

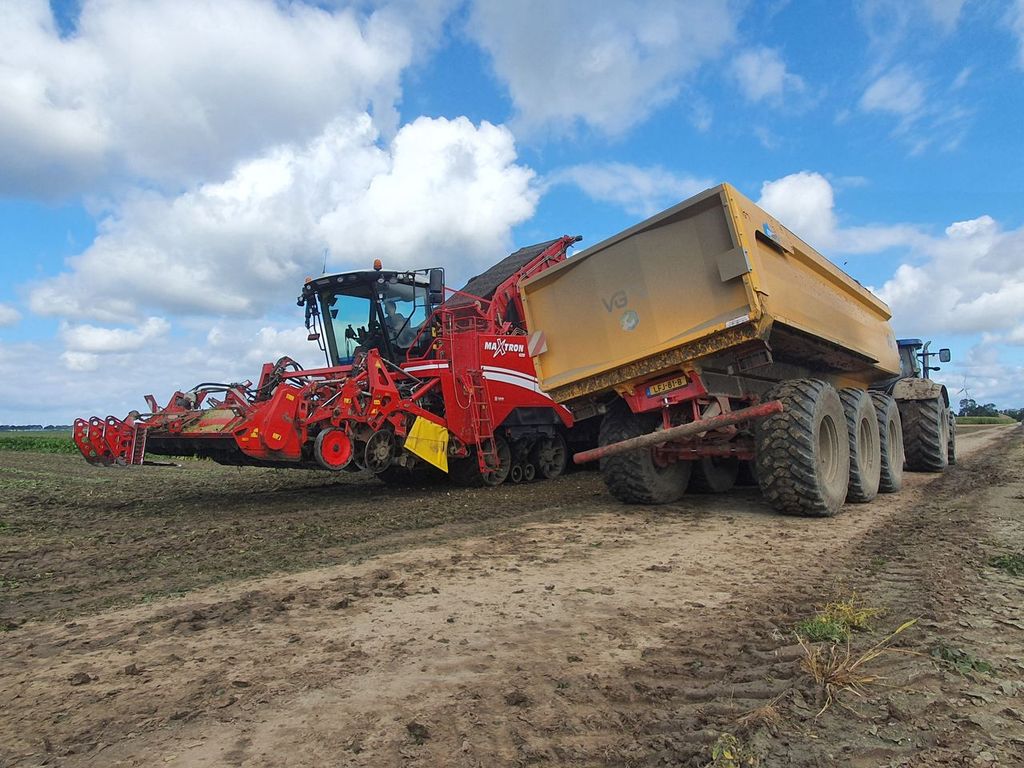

VGM’s agricultural tipper trailers are known for their functionality, strong construction and durability! They prove themselves practically every day. VGM tipper trailers are distinguishable by their well thought out design, with a smooth loading bay made from high quality wear-resistant material. The tipper trailers have a high level of finish and a very comprehensive standard specification. VGM tippers are at home on the open road or on rough farmland.

Standard version

"This tipper trailer is equipped with the following standard features:

10-Hole axles 150 mm. (410 x 180)

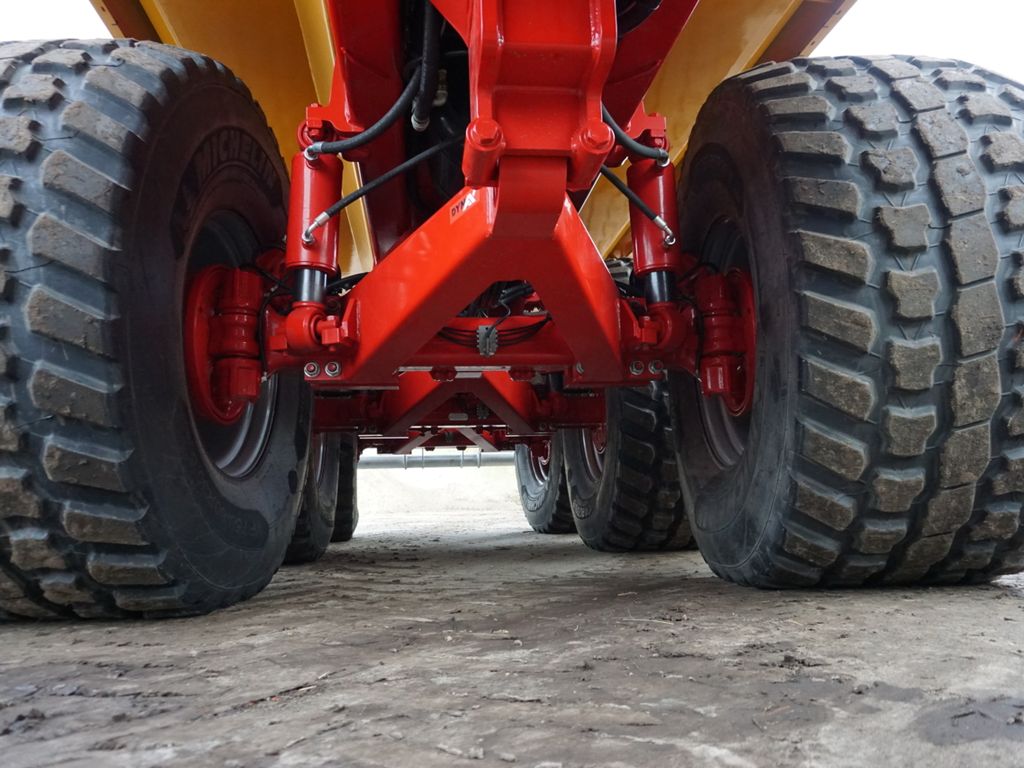

Dynax hydraulic triangle axle suspension
First and third axle forced steering
Hydraulic support leg, operated from the tractor
Tapering container, for easier unloading
Rubber sprung drawbar
Container constructed from high quality wear-resistant steel
Six hydraulically braked wheels
See-through grill in the container
Grain chute in the tailgate
Front and rear width lighting
Rotatable towing eye
Hose support on the drawbar
Hydraulically suspended drawbar
Bolted mudguards on the load area

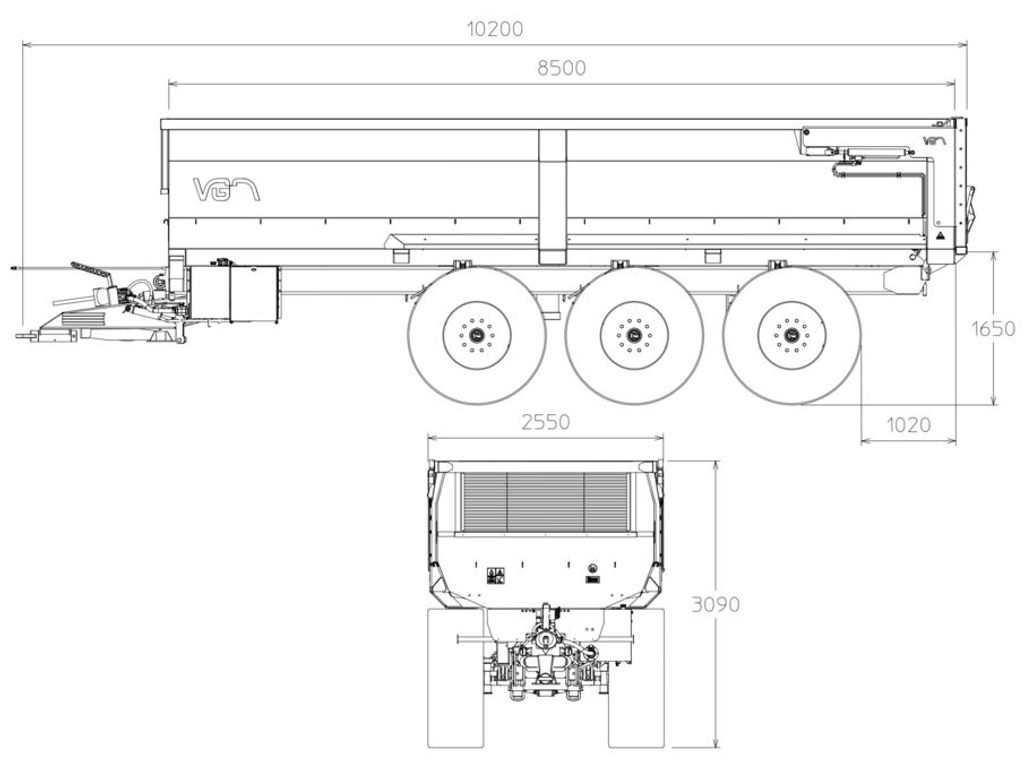

Container dimensions: 8500 ext. X 2400 int. X 1400 int.
Tipper cylinder mounted in cardanic suspension
Track width: 2050 mm
LK folding bumper
Excluding wheels and tyres"

Options

"This tipper trailer can be fitted with the following options:

Stepladder at front of container
Tarpaulin rack on the chassis
Tarpaulin rack on the tailgate
Catwalk on the top front of the container with stepladder option
hydraulic suspension
Rubber outflow to grain chute
Lengthening of operating handle for the grain chute on left and/or right side
Hardwood protective beam attached to upper edge of container
Plastic protective beam attached to upper edge of container
Hydraulic jack leg with hand pump
Double-acting rear valve with six-way tap in combination with hydraulic tailgate
Hydraulic jack leg with six-way tap
Air braking
Air braking in combination with hydraulic braking
ALR valve in combination with hydraulic suspension and air braking
Hydraulic-driven rear axle steering
Silage structure 800 mm type EV30
Silage structure 250 mm type EV30
Work lamp inside front of container (58R)
1 rear work lamp
Switch between container and chassis in combination with 1 rear work lamp
Reversing alarm
rear tracking plug
LED lighting
Plastic toolbox
Scharmüller K80 pick-up hitch
Scharmüller K50 steering ball
PVG preparation
Central steering knuckle grease nipples
Sprayed in company colour (max. 2 colours)
VGM cover system type EV30
Clamps on tailgate type EV
Commando steering bar with quick release
Lifting front axle
PTO pump with quick release valve
Semi-automatic height control
LK hydraulically folding bumper"
